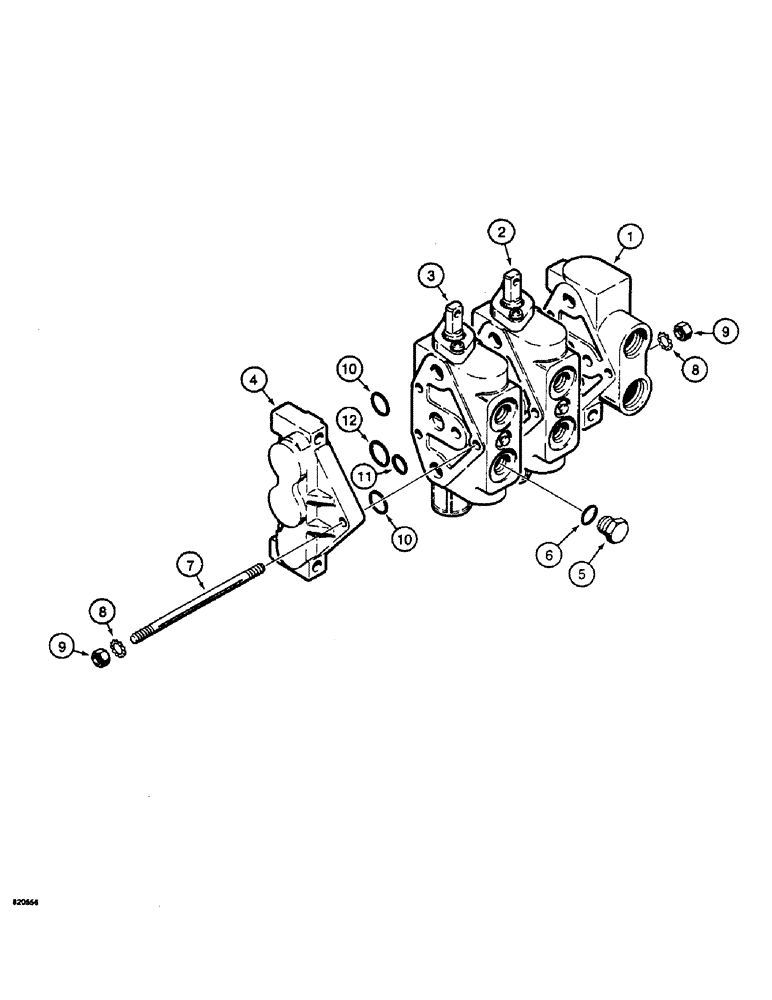

Запчасти Case W4 (142) - FORKLIFT CONTROL VALVE (08) - HYDRAULICS

H650291

VALVE ASSEMBLY - forklift control, Includes: Ref. 1-12

1шт.

1

H401158

COVER

END SECTION - inlet - outlet

1шт.

2

H672315

KNIFE SECTION

SECTION - tilt, parts list Figure 150

1шт.

3

N8008

VALVE

SECTION - lift, parts list Figure 148

1шт.

4

H390724

END SECTION - cover plate

1шт.

5

86512512

PLUG,7/8" - 14 ORB

Lift section, B port only, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

H664906

TIE ROD ASSEMBLY AND SEALS - two spool valve, Includes: Ref. 7-12

1шт.

7

NSS

NOT SOLD SEPARAT

TIE ROD - two spool, 3/8" - 24 NF

3шт.

8

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

9

129-123

NUT,3/8"-24, G5

6шт.

H644914

KIT

SEAL KIT - between sections, Includes: Ref. 10-12

1шт.

10

A55911

O-RING,0.807" ID

- between sections, .80 (20.3 MM) ID

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - between sections, .63" (16.1 MM) ID

1шт.

12

S91469

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- between sections, .86" (21.9 MM) ID

1шт.
