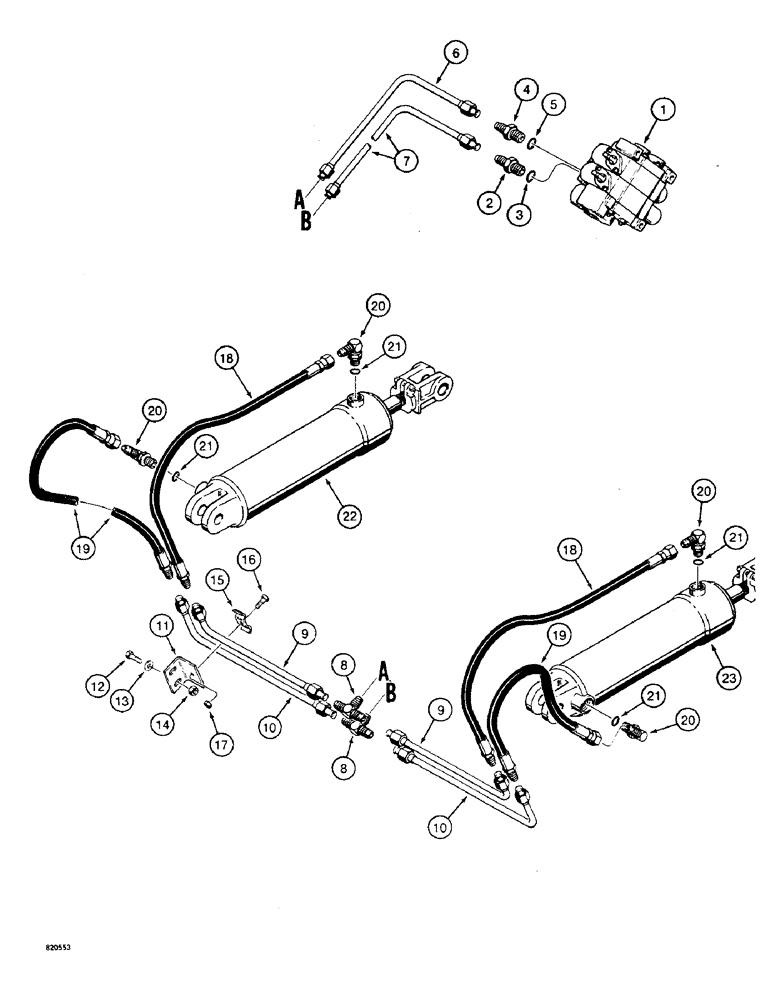

Запчасти Case W4 (136) - FORKLIFT TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - forklift, parts list Figure 142

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, control valve B port to closed end of tilt cylinder tube, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

H638726

CONNECTOR - special restrictor, straight, male, control valve A port to rod end of tilt cylinder tube, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

6

H626630

TUBE - control valve to rod end of tilt cylinder, upper 0.5" OD x 10.15, 7.19" L

1шт.

7

H626721

TUBE - control valve to closed end of tilt cylinder, lower 0.5" OD x 10.15, 7.19" L

1шт.

8

218-594

TEE,3/4"-16, 37 Degree

- manifold, right-hand to left=hand cylinders

2шт.

9

H626739

TUBE,0.5" OD x 12.35, 2.65" L

- to rod end of tilt cylinders

2шт.

10

H626747

TUBE - to closed end of tilt cylinders 0.5" OD x 13.60, 3.73" L

2шт.

11

H336453

BRACKET - tube support

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

14

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

15

A12032

CLAMP

- tube

2шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

18

H202101

ELECTRICAL WIRE

HOSE - tube to rod end of tilt cylinder, 28" (711 MM) long

2шт.

19

H190041

HYDRAULIC HOSE,9.52 mm ID x 457.20 mm, SAE 100R1

9.52 mm ID x 457.20 mm Tube to Closed End of Tilt Cylinder

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, make, hose to tilt cylinder, Includes: Ref. 21

4шт.

22

G34196

CYLINDER

- tilt, left hand, parts list Figure 162

1шт.

23

G34197

CYLINDER ASSY.

CYLINDER - tilt, right-hand, parts list Figure 162

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

4шт.
