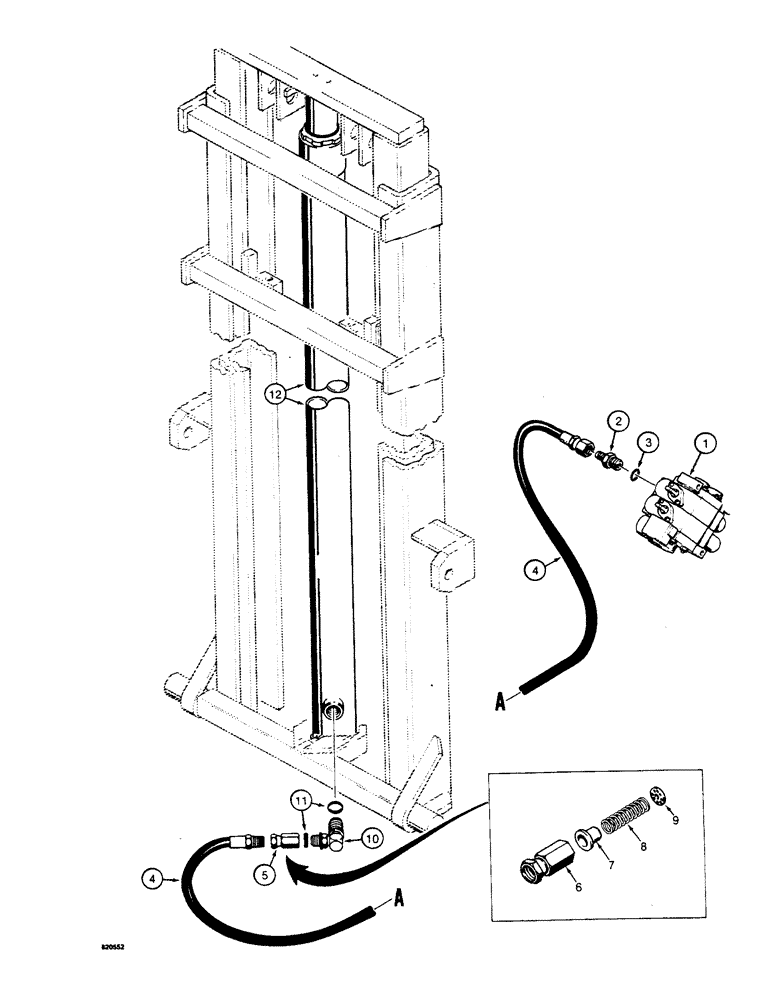

Запчасти Case W4 (134) - FORKLIFT LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - forklift, parts list Figure 142

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, control valve A port to hose, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

4

H200295

HOSE ASSY.

HOSE - to lift cylinder, 36" (914 MM) long

1шт.

5

D48875

VALVE

RESTRICTOR ASSEMBLY - lift cylinder hydraulic circuit, Includes: Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - restrictor

1шт.

7

D48876

SPACER

- restrictor

1шт.

8

D48877

SPRING

- restrictor

1шт.

9

D48878

WASHER

- restrictor

1шт.

10

D48874

ELBOW

- 90 degree, special, adjustable, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

2шт.

12

H650846

CYLINDER - lift, parts list Figure 160

1шт.
