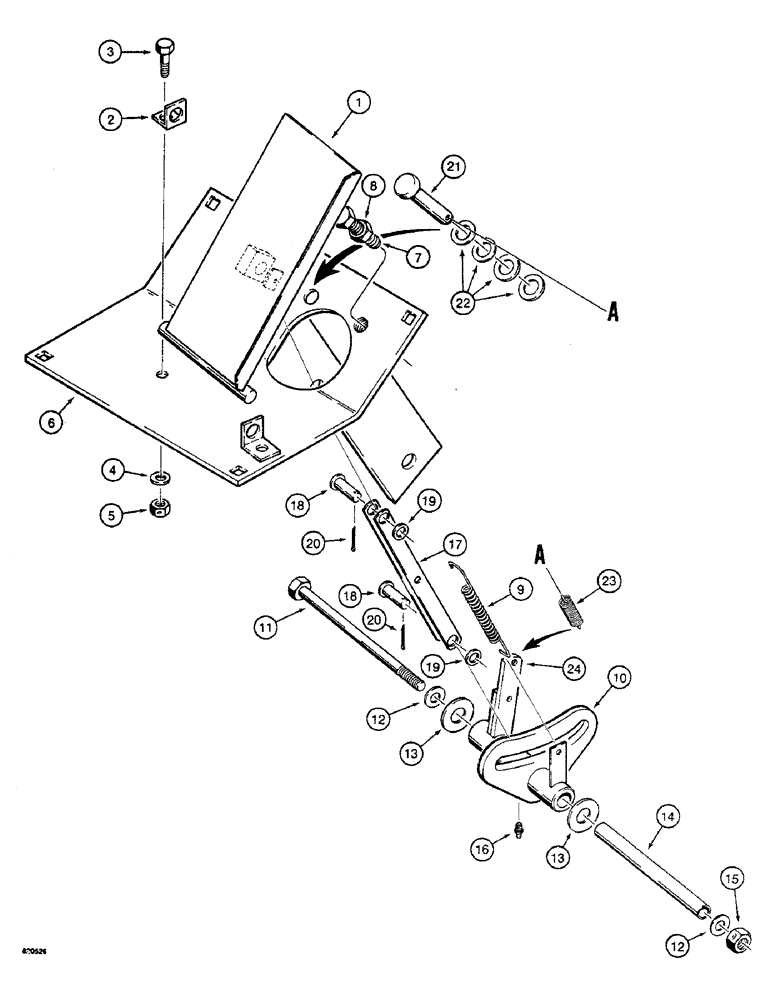

Запчасти Case W4 (090) - HYDROSTATIC PUMP CONTROLS, FORWARD AND REVERSE PEDAL ASSEMBLY (06) - POWER TRAIN

1

H626788

PEDAL

- foot

1шт.

2

H357459

ANGLE

BRACKET - pedal anchor

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

6

H626838

PLATE

- foot pedal

1шт.

7

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

1шт.

8

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

9

H358069

SPRING

- pedal return

1шт.

10

H626796

PIVOT

- forward and reverse, used with 1/4" control cable (Figure 82), if used, not shown

1шт.

When replacing the pivot, be sure to order the correct part H626796, if it is to be used with a 1/4" control cable (See Figure 82 for parts list). A pivot for 1/4" control cable can be modified for 5/16" control cable (see Figure 84 for parts list) by reaming the ball joint mounting hole from .265" to .325" diameter.

1шт.

10

H649483

PIVOT

- forward and reverse, used with 5/16" control cable (Figures 82 and 84), if used

1шт.

When replacing the pivot, be sure to order the correct part H626796, if it is to be used with a 1/4" control cable (See Figure 82 for parts list). A pivot for 1/4" control cable can be modified for 5/16" control cable (see Figure 84 for parts list) by reaming the ball joint mounting hole from .265" to .325" diameter.

1шт.

11

113-2445

BOLT,Hex, 1/2" - 13 x 7-1/4", Gr 5

- hex head, 1/2" - 13 NC x 7-1/4"

1шт.

12

195-106

WASHER,1/2"

- flat, 1/2"

2шт.

13

195-109

WASHER,3/4"

- flat, 3/4"

2шт.

14

H357483

SLEEVE

- pivot

1шт.

15

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, pivot

1шт.

17

H358168

LINK

-, Serial Range: pedal-pivot

2шт.

18

H430868

CLEVIS PIN

- link retaining, 1/2" x 1-3/8" long

2шт.

19

195-2066

WASHER,33/64" x 7/8" x .180"

- flat, 1/2", special

2шт.

20

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), , Pin 1/8" x 3/4"

2шт.

21

H68635

AXLE PIN

CLEVIS PIN - spring retaining, 3/8" x 3/4" long, if used

1шт.

These additional parts are used with the neutral centering system listed on Figure 88 only and are part of H669077 kit. See Figure 88 for additional kit parts.

1шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", tension adjustment, if used

4шт.

These additional parts are used with the neutral centering system listed on Figure 88 only and are part of H669077 kit. See Figure 88 for additional kit parts.

1шт.

23

H360313

VALVE SPRING

SPRING - tension, pedal return, if used

1шт.

These additional parts are used with the neutral centering system listed on Figure 88 only and are part of H669077 kit. See Figure 88 for additional kit parts.

1шт.

24

H429019

TAB - pivot, welds to item 10 (H649483)

1шт.

These additional parts are used with the neutral centering system listed on Figure 88 only and are part of H669077 kit. See Figure 88 for additional kit parts.

1шт.
