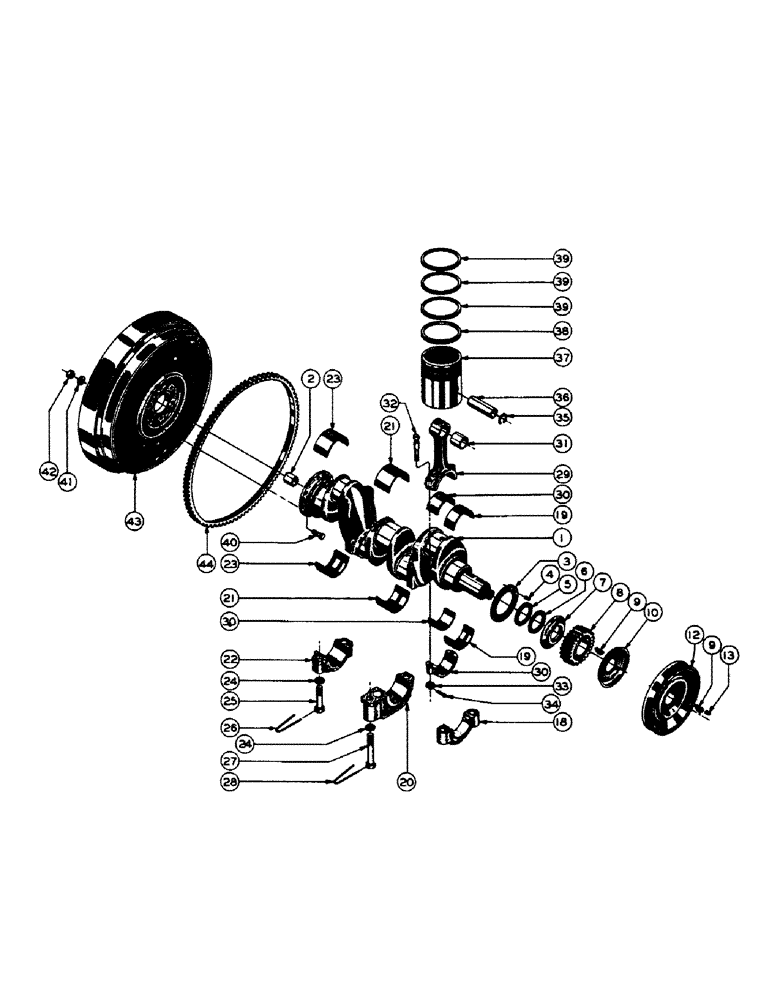

Запчасти Case M3B (026) - GASOLINE ENGINE INSTALLATION, CRANKCASE, CYLINDER HEAD, GEAR COVER, OIL PAN

1

10161

SCREEN

CRANKSHAFT ASS'Y.

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

2

VT3370

X

BUSHING - c/shaft pilot (10163)

1шт.

3

VT3376

WASHER

- c/shaft thrust (10165)

2шт.

4

VT3364

X

PIN - dowel, 5/32 dia. x 1/2 (10087)

3шт.

5

VT3367

X

SHIM - c/shaft thrust (10166)

8шт.

6

VT3368

X

SHIM - c/shaft thrust (10167)

8шт.

7

10171

PLATE - c/shaft thrust

1шт.

8

10282

HOSE

GEAR - c/shaft timing

1шт.

9

126-66

WOODRUFF KEY

KEY - #15 Woodruff (48764)

2шт.

10

10168

THROWER - c/shaft oil

1шт.

11

RESERVED

1шт.

12

31515

GASKET

PULLEY - c/shaft

1шт.

13

10542

NUT

PLUG - c/shaft pulley keyway

1шт.

(14 thru 17) RESERVED

1шт.

18

10091

WASHER

CAP - c/shaft front bearing

1шт.

19

10181

BEARING ASS'Y. - front main (Upper & lower) (See Figure 108 for kits)

1шт.

20

NLS

NO LONGER SERVICED

CAP - c/shaft center brg

1шт.

21

10182

BEARING ASS'Y. - center main (Upper & lower) (See Figure 108 for kits)

1шт.

22

10093

STOP

CAP - c/shaft rear bearing

1шт.

23

10183

BEARING ASS'Y. - rear main (Upper & lower) (See Figure 108 for kits)

1шт.

24

VT3359

WASHER - plain (10080)

6шт.

25

10071

OIL SEAL

SCREW - 1/2-13 NC x 2-5/8

4шт.

26

10376

WIRE - lock, #19 dia. x 10

2шт.

27

10070

BOLT

SCREW - 1/2-13 NC x 3-1/4

2шт.

28

10377

BOW

WIRE - lock #19 dia. x 12

1шт.

29

10195

ROD ASS'Y. - connecting (Cyl. 1 & 3)

2шт.

10200

ROD ASS'Y. - connecting (Cyl. 2 & 4)

2шт.

NSS

NOT SOLD SEPARAT

ROD & CAP - connecting

1шт.

30

10211

X

BEARING - conn rod (Cyl. 1 & 3) (See Figure 108 for kits)

2шт.

10212

ELEC CONNECTOR

BEARING - conn rod (Cyl. 2 & 4) (See Figure 108 for kits)

2шт.

31

10786

TAB SPRING

BUSHING - piston pin (See Figure 108 for kits)

1шт.

32

VT3374

X

BOLT - conn rod (10205)

2шт.

33

48312

NUT - slotted hex (3/8-24 NF)

2шт.

34

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

8шт.

R10856

PISTON ASS'Y. - (With rings), Serial Range: (Optional-34019)

4шт.

34019-020

PISTON ASS'Y. - (.020 oversize), Serial Range: (Optional-34019)

4шт.

86628108

SPRING

PISTON ASS'Y.

4шт.

35

10252

RING - piston pin retaining

2шт.

36

34015

PIN - piston

1шт.

37

NSS

NOT SOLD SEPARAT

PISTON

1шт.

R2074-020

RING KIT - piston (Rebore) (.020 oversize), Serial Range: (Optional-R2075)

1шт.

5949-030

RING KIT - piston (2 in 1) (.030 oversize), Serial Range: (Optional-R2075)

1шт.

R2074-040

RING KIT - piston (Rebore) (.040 oversize), Serial Range: (Optional-R2075)

1шт.

5949

FUEL TANK

RING KIT - piston (2 in 1) (Std. brg.), Serial Range: (Optional-R2075)

1шт.

R2075-030

RING KIT - piston (Std. brg.) (.030 oversize), Serial Range: (Optional-R2075)

1шт.

R2075-020

RING KIT - piston (Std. brg.) (.020 oversize), Serial Range: (Optional-R2075)

1шт.

R2075

RING KIT - piston (Std. brg.) (Standard)

1шт.

38

NSS

NOT SOLD SEPARAT

RING - piston

4шт.

39

NSS

NOT SOLD SEPARAT

RING - piston

4шт.

NSS

NOT SOLD SEPARAT

RING - piston

8шт.

40

10995

BOLT - flywheel housing

6шт.

41

48526

X

WASHER - lock, Shakeproof

6шт.

42

48162

NUT - light SF hex (3/8-24 NF)

6шт.

D31191

FLYWHEEL

FLYWHEEL ASS'Y.

1шт.

43

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.
