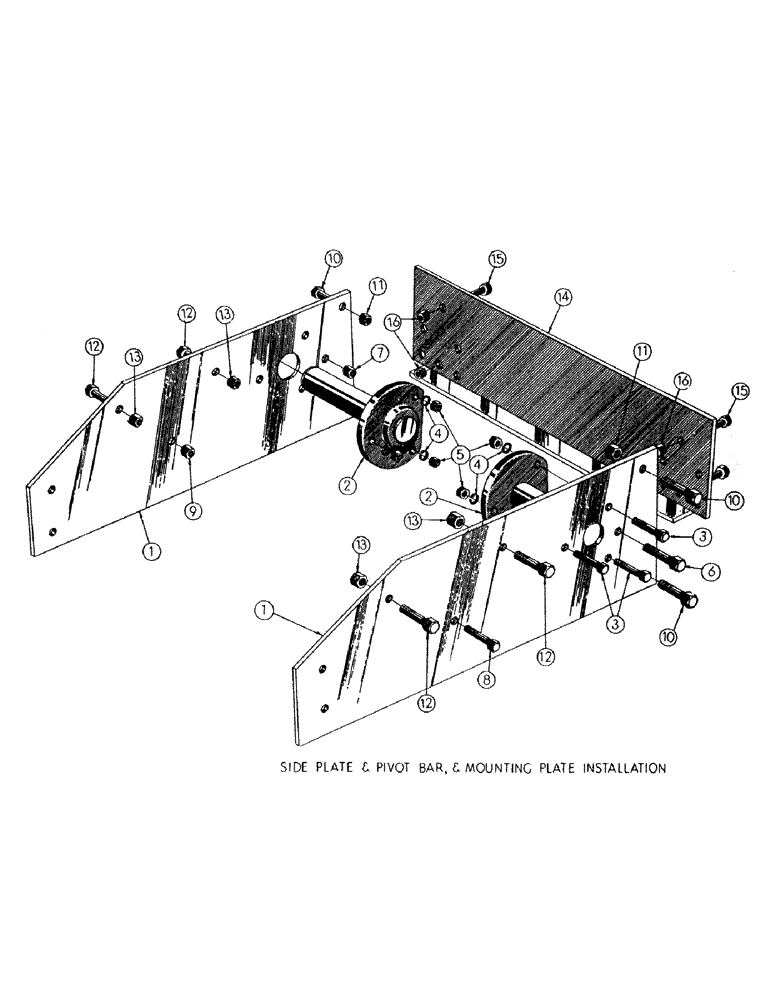

Запчасти Case M3B (018) - SIDE PLATE, PIVOT BAR, MTG. PARTS

1

60764

PLATE - side

2шт.

2

33067

BELT

BAR - pivot

2шт.

3

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4-16 NF x 2-1/2 (33067 mt'g.) (45787)

6шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

6шт.

6

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8-18 NF x 2-1/2 (60764 mt'g.) (45762)

2шт.

7

129-498

NUT - lock (5/8-18 NF) (11934) NASP

2шт.

8

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4-16 NF x 2-3/4 (60764 mt'g.) (45788)

2шт.

9

131-395

LOCK NUT

NUT - hi

2шт.

10

33046

BOLT - body fit (60764 mt'g)

4шт.

11

129-498

NUT - hi (11934) NASP

4шт.

12

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body fit (60764 mt'g.)

4шт.

13

11937

O-RING

NUT - hi

4шт.

14

60661

PLATE ASS'Y. - mounting

1шт.

15

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4-16 NF x 2-1/4 (60661 mt'g.) (45786)

4шт.

16

131-395

LOCK NUT

NUT - hi

4шт.
