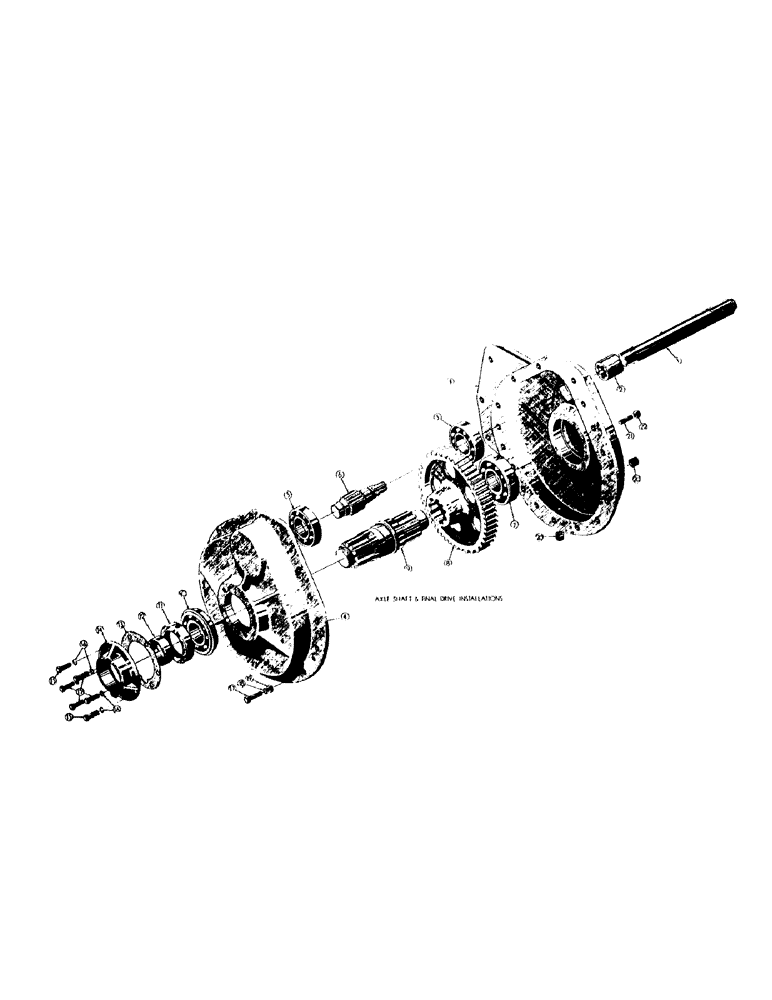

Запчасти Case M3B (016) - FINAL DRIVE & AXLE SHAFT INSTALLATION

1

51200025

SHAFT

- axle

2шт.

2

51200026

COUPLING

- final drive

2шт.

11808

X

FINAL DRIVE ASS'Y. - R.H.

1шт.

11809

X

FINAL DRIVE ASS'Y. - L.H.

1шт.

3

11816

RIVET

HOUSING - final drive R.H. inner

1шт.

11817

RIVET

HOUSING - final drive L.H. inner

1шт.

4

11823

X

HOUSING - final drive outer

1шт.

5

40002

BALL BEARING

- ball

2шт.

6

51200027

SHAFT

PINION - final drive

1шт.

7

40003

BEARING

- ball

1шт.

8

CAS11833

GEAR WHEEL

GEAR - final drive

1шт.

9

CAS11853

SHAFT

- final drive

1шт.

10

D14979

BEARING

BEARING - ball

1шт.

11

NLS

NO LONGER SERVICED

SEAL - oil

1шт.

12

51200024

SPACER

- final drive shaft

1шт.

13

CAS11828

GASKET

- seal retainer

1шт.

14

11827

RETAINER

- seal

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(11827 mt'g.) (45057) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

16

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

17

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

HHCS - 7/16-20 NF x 1-5/8 (11823, Serial Range: -11816-7)

12шт.

14-740

BOLT,Hex, 7/16" - 20 x 2-1/2"

HHCS - 7/16-20 NF x 2-1/2 (11823 to 11816-7) (45687)

5шт.

18

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

17шт.

19

25-117

NUT,7/16"-20, G5

- reg. SF hex (7/16-20 NF) (48103)

17шт.

20

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - pipe, cts'k. sq. hd. 1/2 NP (41838)

2шт.

21

R29874

STUD

- 5/8-18 NF x 11 NC x 2-1/2 (11808-09 mt'g.)

8шт.

22

11934

O-RING

NUT - lock (5/8-18 NF)

8шт.

NOTE: ADDITIONAL HOUSINGS D29736 AND D24658

1шт.
