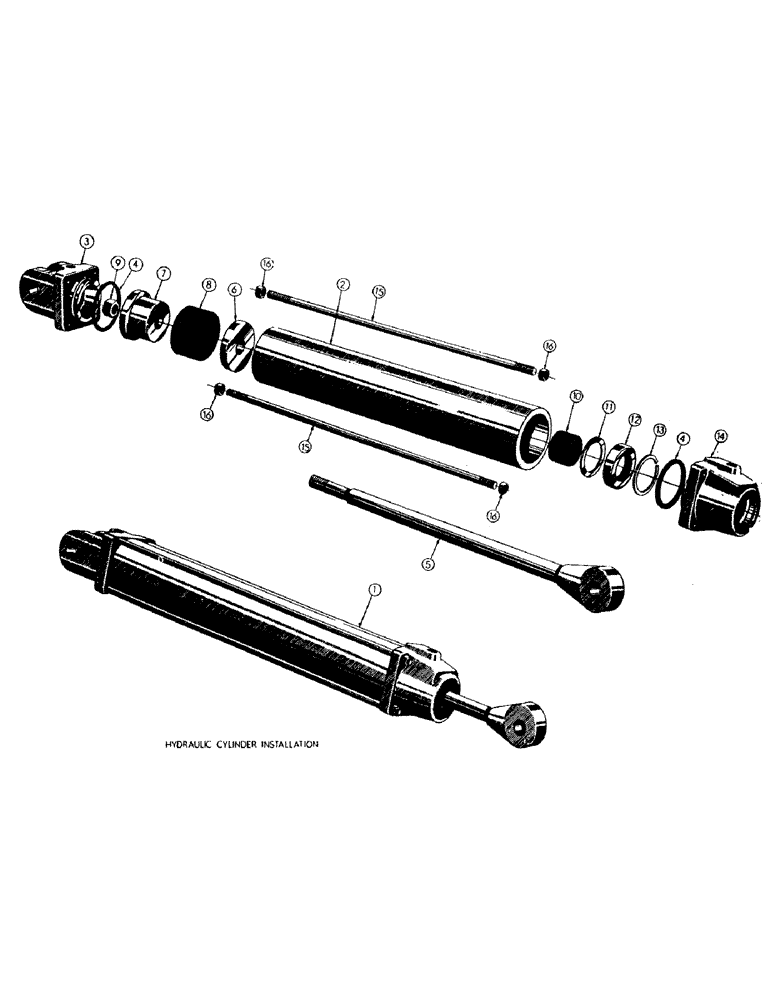

Запчасти Case M3B (134) - LOAD CLAMP HYDRAULIC CYLINDER

1

35307

CYLINDER ASS'Y. - hydraulic

1шт.

2

16046

TUBE - hydraulic cylinder

1шт.

3

17591

END - cylinder

1шт.

4

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

5

35371

END YOKE & PISTON ROD ASS'Y.

1шт.

6

30630

CARTRIDGE

WASHER - retainer

1шт.

7

30631

X

BLOCK - piston

1шт.

8

17598

PACKING

- piston

1шт.

9

131-152

HARDWARE

NUT - lock (3/4-16 NF) (48070)

1шт.

10

17597

PACKING

- rod

1шт.

11

36259

WASHER

- packing

1шт.

12

17603

WIPER SEAL

- wiper

1шт.

13

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

14

17592

CAP - end

1шт.

15

16043

ANCHOR

ROD - tie

4шт.

16

131-162

LOCK NUT

NUT - lock (3/8-24 NF) (17606)

8шт.
