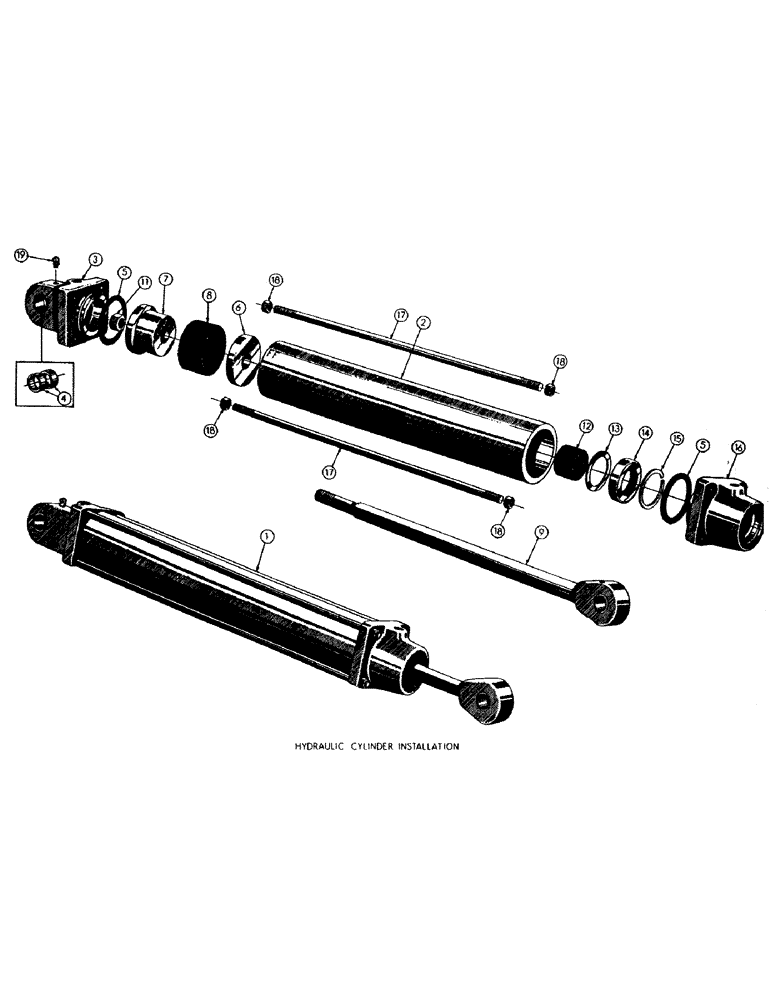

Запчасти Case M3B (130) - BUCKET DUMP CYLINDER

1

33772

CYLINDER ASS'Y. - hydraulic

2шт.

2

33771

TUBE - hydraulic cylinder

1шт.

3

D20038

END ASS'Y. - cylinder

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

5

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

6

30630

CARTRIDGE

WASHER - retainer

1шт.

7

30631

X

BLOCK - piston

1шт.

8

17598

PACKING

- piston

1шт.

9

33768

TIGHTENER

END YOKE & PISTON ROD ASS'Y.

1шт.

10

RESERVED

1шт.

11

131-152

HARDWARE

NUT - lock (3/4-16 NF) (48070)

1шт.

12

17597

PACKING

- rod

1шт.

13

36259

WASHER

- packing

1шт.

14

17603

WIPER SEAL

- wiper

1шт.

15

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

16

30628

CAP - end

1шт.

17

33769

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

8шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (49217) 90º, 1/8" NPT x .84" lg

1шт.
