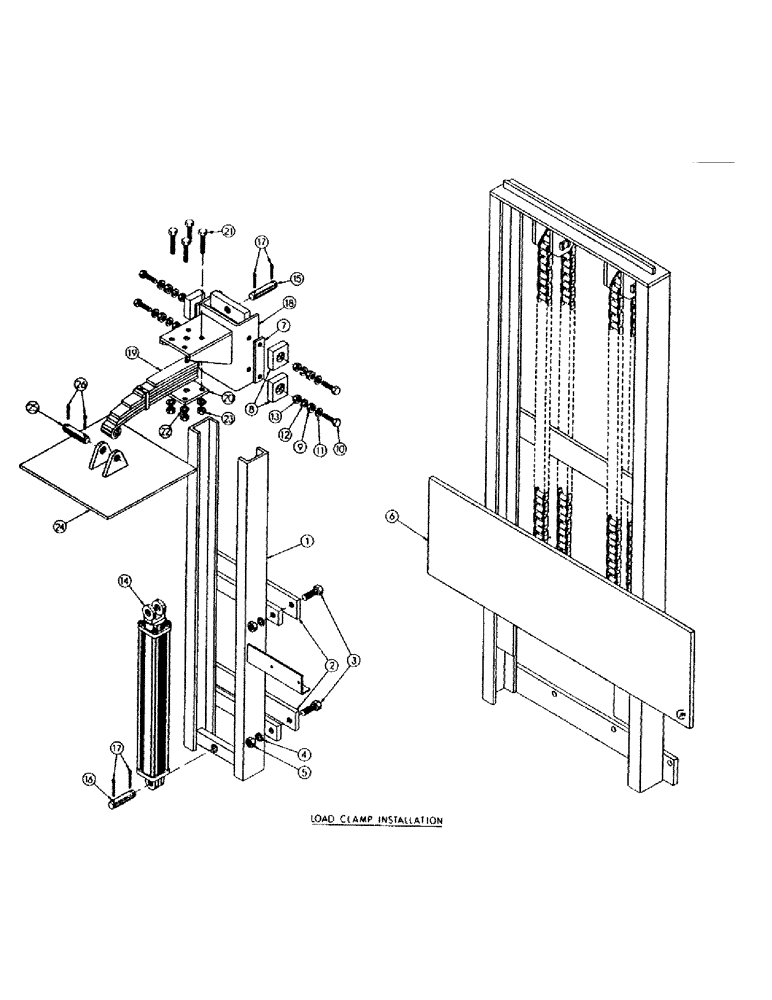

Запчасти Case M3B (126) - LOAD CLAMP INSTALLATION

1

35320

FRAME ASS'Y.

1шт.

2

35323

BEARING ASSY

PLATE ASS'Y. - clamp

2шт.

3

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4-16 NF x 2-1/4 (35323 mt'g.) (45786)

4шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

6

60793

EXTENSION ASS'Y. - mast (See Figure 118 for breakdown)

1шт.

7

35333

PLATE - spacer

2шт.

8

35334

BALL BEARING

BLOCK - slide

4шт.

9

35335

SPACER

4шт.

10

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x (35334 mt'g.) (45710)

4шт.

11

95-8

WASHER,1/2"

- plain (48408) 1/2"

4шт.

12

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

13

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

14

35307

CYLINDER ASS'Y. - hydraulic (See Figure 134 for breakdown)

1шт.

15

16726

PIN - cylinder mt'g.

1шт.

16

18743

PIN - cylinder mt'g.

1шт.

17

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

18

35325

CLAMP

TROLLEY ASS'Y.

1шт.

19

35329

SHAFT

SPRING ASS'Y.

1шт.

20

35357

PLATE - spring mounting

1шт.

21

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS - 1/2-20 NF x 3-1/2 (35329 & 35357 mt'g.) (45716)

4шт.

22

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

23

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

24

35317

PLATE ASS'Y. - clamp

1шт.

25

16726

PIN - clamp plate mt'g.

1шт.

26

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

2шт.
