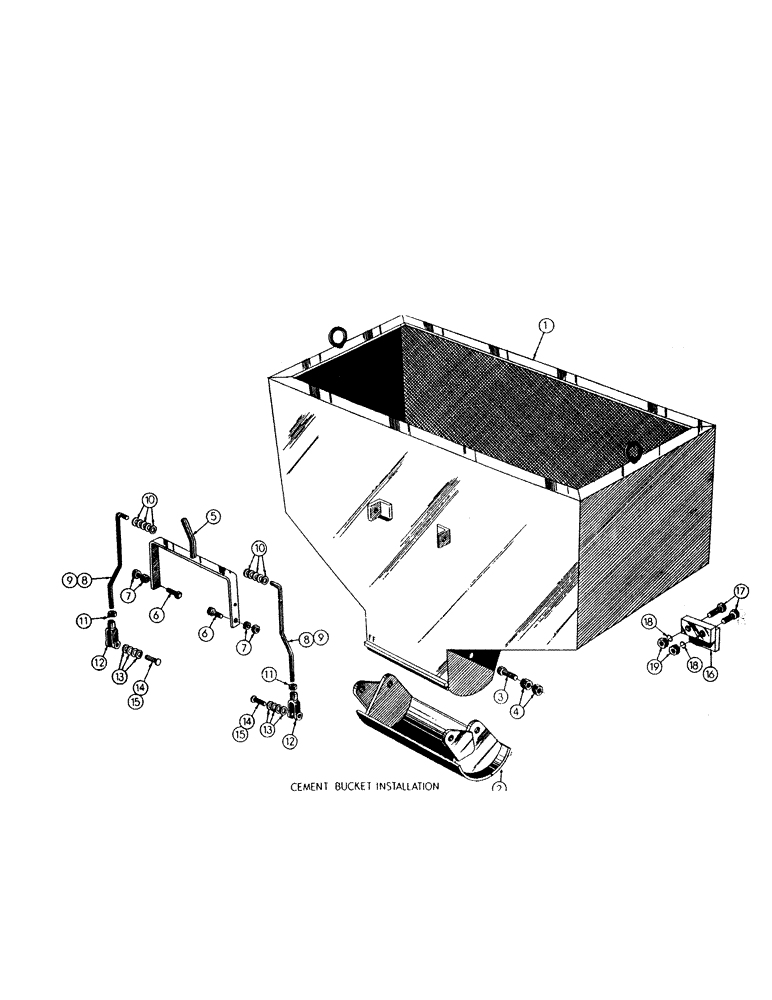

Запчасти Case M3B (124) - CEMENT BUCKET INSTALLATION

1

61027

BUCKET ASS'Y. - cement (1/2 yd.)

1шт.

61026

BUCKET ASS'Y. - cement (1/3 yd.)

1шт.

2

65293

SCOOP ASS'Y.

1шт.

3

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4-16 NF x 2 (65293 mt'g.) (45785)

2шт.

4

61005

BUSHING & SPACER

BUSHING

2шт.

5

195-53

WASHER,1" x 2" x .134"

- plain (48436)

2шт.

6

95-12

WASHER,3/4"

- plain (48412)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

8

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

2шт.

9

65294

MOUNTING PLATE

HANDLE ASS'Y.

1шт.

10

31383

BOLT - shoulder (65294 mt'g.)

2шт.

11

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

13

31400

CLAMP

GRIP - rubber

1шт.

14

65295

ROD - scoop control

2шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

16

195-33

WASHER,1/2"

- plain (48428)

4шт.

17

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

18

O2701AB

X

YOKE - adjustable (48605)

2шт.

19

O2499AB1

X

PIN - yoke

2шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

21

61035

CLAMP ASS'Y.

2шт.

22

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS - 3/4-16 NF x 3-1/4 (61035 mt'g.) (45790)

4шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

24

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.
