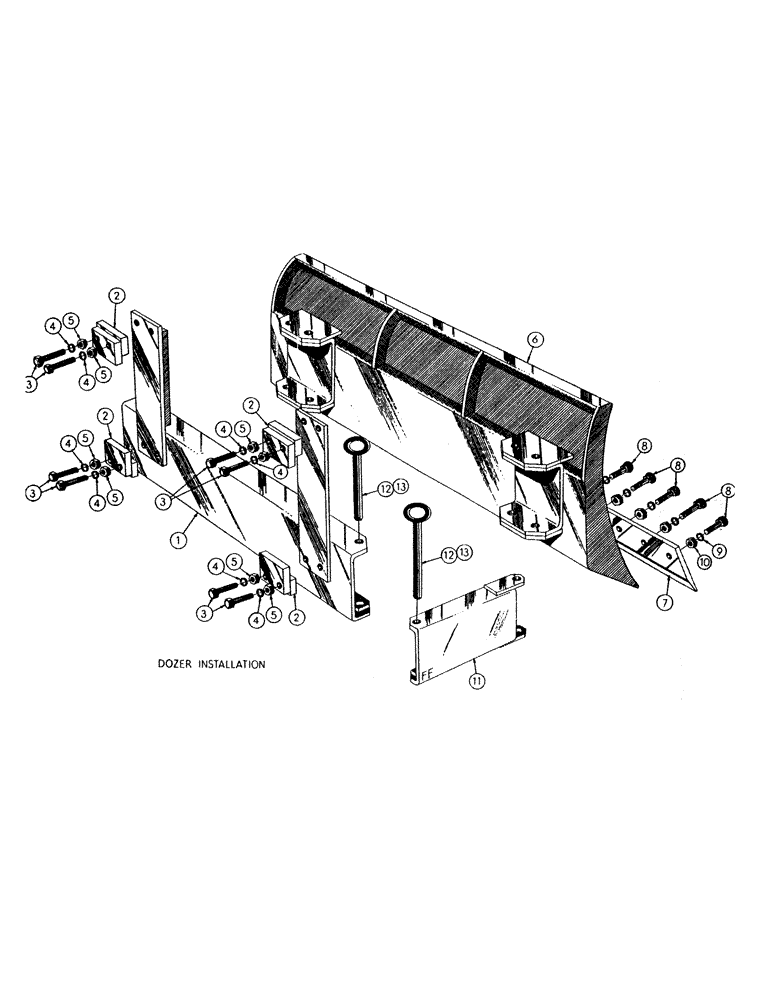

Запчасти Case M3B (122) - DOZER INSTALLATION

1

60400

BRACE ASS'Y. - mounting

1шт.

2

61035

CLAMP ASS'Y.

4шт.

3

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4-16 NF x 3 (61035 mt'g.) (45789)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

8шт.

6

60405

DRILL

BLADE ASS'Y. - dozer

1шт.

7

60407

EDGE - cutting

1шт.

8

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2-13 NC x 1-3/4 (46707)

16шт.

9

92-8

LOCK WASHER,1/2"

(48448) 1/2"

16шт.

10

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC) (47804)

16шт.

11

60393

ARM ASS'Y.

1шт.

12

60455

DRILL

PIN ASS'Y.

3шт.

13

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (48739) 1/4" x 2"

3шт.
