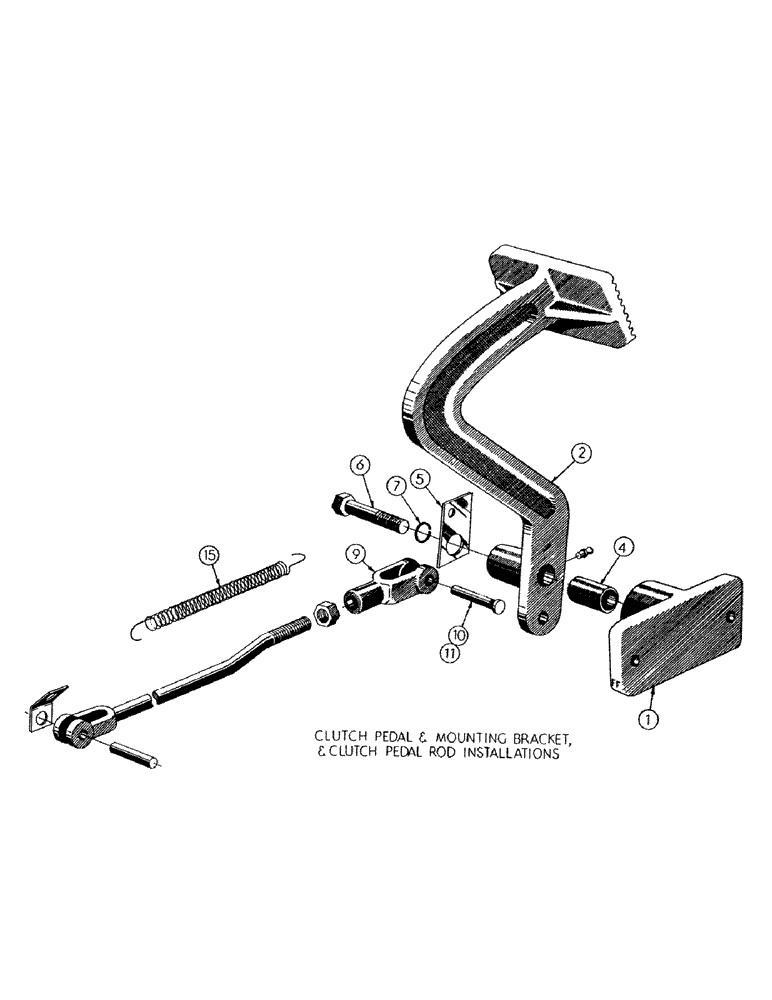

Запчасти Case M3B (014) - CLUTCH PEDAL & MTG. BRACKET INSTALLATION

1

60557

BRACKET - clutch pedal mounting

1шт.

2

D20160

PEDAL - clutch

1шт.

3

49275

FITTING - straight drive type grease

1шт.

4

11031

SPACER

BUSHING - clutch pedal

1шт.

5

11470

BEARING

ANCHOR - spring

1шт.

6

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(D20160 mt'g.) (45162) Hex, 5/8"-11 x 2 1/2", G5

1шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

1шт.

8

D20162

ROD ASS'Y. - clutch

1шт.

9

O2701AB

X

YOKE - adjustable

1шт.

10

O2499AB1

X

PIN - yoke

1шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

1шт.

12

30623

KIT

PIN - yoke

1шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

1шт.

14

NLS

NO LONGER SERVICED

1шт.

15

11469

SPRING

- clutch pedal return

1шт.

16

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.
