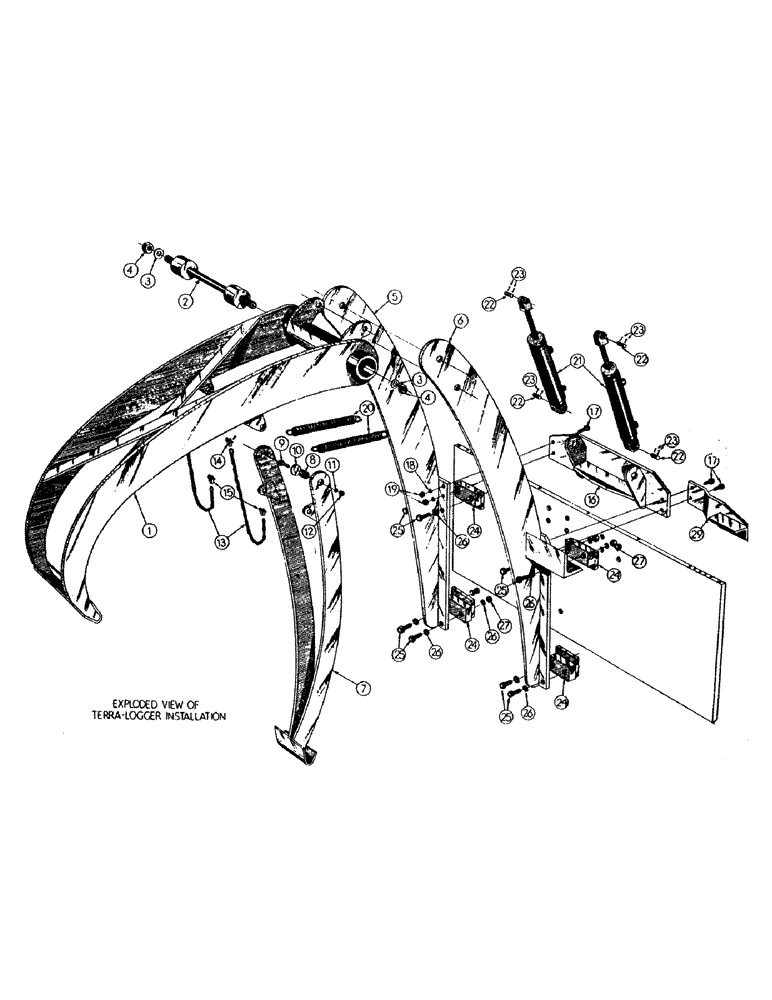

Запчасти Case M3B (114) - TERRALOGGER INSTALLATION

1

60631

ARM ASS'Y. - alligator

1шт.

2

60479

TIE ROD & BLOCK ASS'Y.

1шт.

3

195-53

WASHER,1" x 2" x .134"

- plain (48436)

2шт.

4

129-500

WING NUT,#10-32

NUT - lock (1"- 14NF) (11937)

2шт.

5

60472

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

BRACKET ASS'Y. - pivot support, R.H.

1шт.

6

60473

BOLT,Hex, 7/16"-14 x 3 1/2", G5

BRACKET ASS'Y. - pivot support, L.H.

1шт.

7

60489

ARM ASS'Y. - sweep

1шт.

8

60490

SPACER - sweep arm ass'y.

2шт.

9

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4-16 NF x 2-1/2 (60490 mt'g.) (45787)

2шт.

10

195-45

WASHER,3/4"

(48432) 3/4"

2шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

12

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

2шт.

13

60632

TOOTH

CHAIN - sweep arm (14 links)

2шт.

14

20064

SHACKLE - chain joining

2шт.

15

20064

SHACKLE - chain joining

2шт.

16

60486

ANCHOR ASS'Y. - cylinder

1шт.

17

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x 2 (60486 mt'g.) (45710)

4шт.

18

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

19

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

20

60516

SPRING

2шт.

21

17590

CYLINDER ASS'Y. - hydraulic (See Figure 132 for breakdown)

2шт.

22

18743

PIN - cylinder mt'g.

4шт.

23

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

8шт.

24

61035

CLAMP ASS'Y.

4шт.

25

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4-16 NF x 2-1/4 (60524 mt'g.) (45786)

8шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

27

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

8шт.
