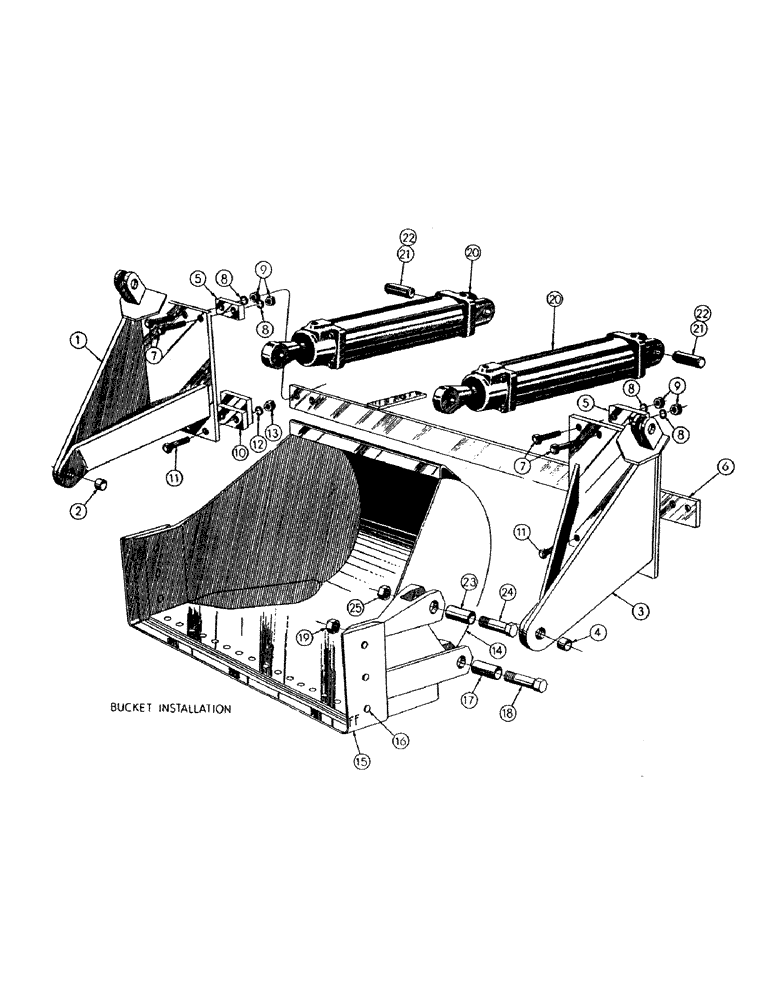

Запчасти Case M3B (110) - BUCKET INSTALLATION

1

R10867

ARM ASS'Y. - lift R.H.

1шт.

2

31149

X

BUSHING

1шт.

3

R10868

ARM ASS'Y. - lift L.H.

1шт.

4

31149

X

BUSHING

1шт.

5

60526

BLOCK - spacer

2шт.

6

60991

PLATE ASS'Y. - stiffener

1шт.

7

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4-16 NF x 3 (60526 & 60991 mt'g.) (45789)

4шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

9

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

10

61035

CLAMP ASS'Y.

2шт.

11

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4-16 NF x 2-1/2 (61035 mt'g.) (45787)

4шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

4шт.

13

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

14

32650

GEAR

BUCKET ASS'Y.

1шт.

15

30889

EDGE - cutting

1шт.

16

46-826

RIVET

- 1/2 dia. x 1-5/8 (49821)

21шт.

17

32599

PIN - (32650 mt'g.)

2шт.

18

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS - 1/2-20 NF x 4 (32599 mt'g.) (45718)

2шт.

19

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (17586)

2шт.

20

33772

CYLINDER ASS'Y. - hydraulic (See Figure 130 for breakdown)

2шт.

21

31715

PIN

- (33772 mt'g.)

2шт.

22

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

23

32598

PIN

- (33772 mt'g.)

2шт.

24

14-664

BOLT,Hex, 3/8" - 24 x 4", Gr 5

HHCS - 3/8-24 NF x 4 (32598 mt'g.) (45668)

2шт.

25

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

2шт.
