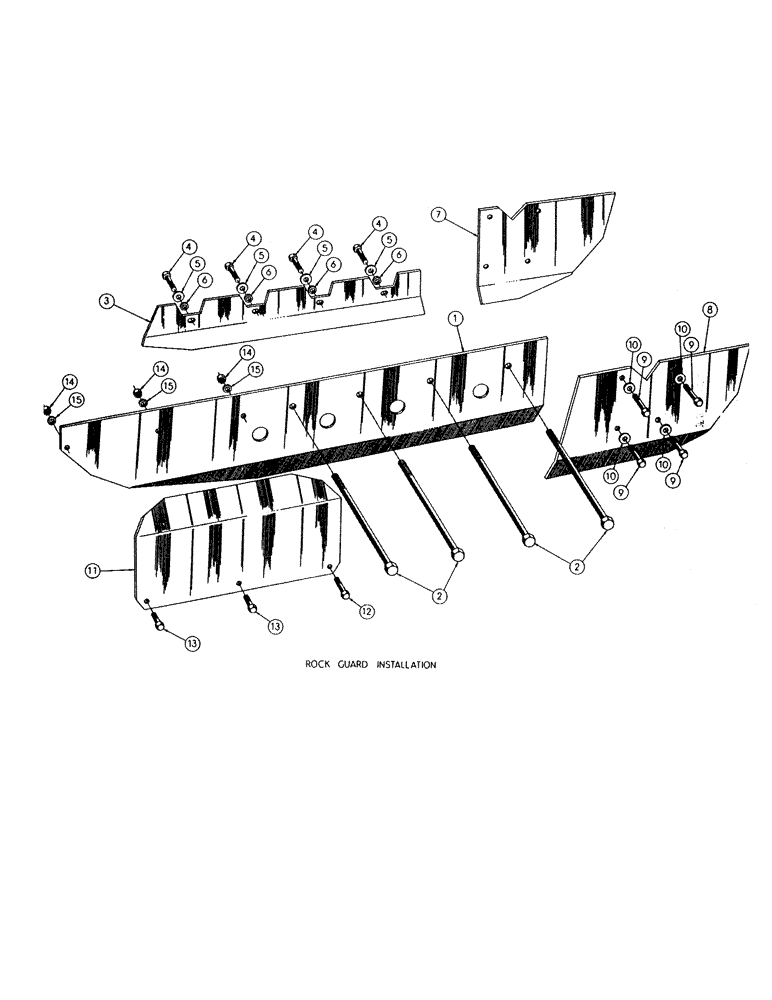

Запчасти Case M3B (104) - ROCK GUARD INSTALLATION

6123

CRANK

ROCK GUARD INSTALLATION

1шт.

1

33952

SUPPORT

ROCK GUARD - outer, R.H.

1шт.

33953

BRACKET

ROCK GUARD - outer, L.H.

1шт.

2

46495

SHIFTING UNIT

HHMB - 3/4-16 NF x 11-5/8 (33952 & 33963 mt'g.)

8шт.

3

33950

CONNECTING LINK

ROCK GUARD - inner, R.H.

1шт.

33951

HYDRAULIC PUMP

ROCK GUARD - inner, L.H.

1шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2-20 NF x 1-1/2 (33950 & 33951 mt'g.) (45708)

8шт.

5

195-33

WASHER,1/2"

- plain (48428)

8шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

8шт.

7

33892

ROCK GUARD - inner, idler R.H.

1шт.

33893

ROCK GUARD - inner, idler L.H.

1шт.

8

33890

WASHER

ROCK GUARD - outer, idler R.H.

1шт.

33891

GROOVED BUSHING

ROCK GUARD - outer, idler L.H.

1шт.

9

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x 2 (33890 & 33891 mt'g.) (45710)

8шт.

10

195-33

WASHER,1/2"

- plain (48428)

8шт.

11

32296

PLATE - sprocket guard

2шт.

12

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4 (32296 mt'g.) (45709)

2шт.

13

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4 (32296 mt'g.) (45707)

4шт.

14

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

6шт.

15

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.
