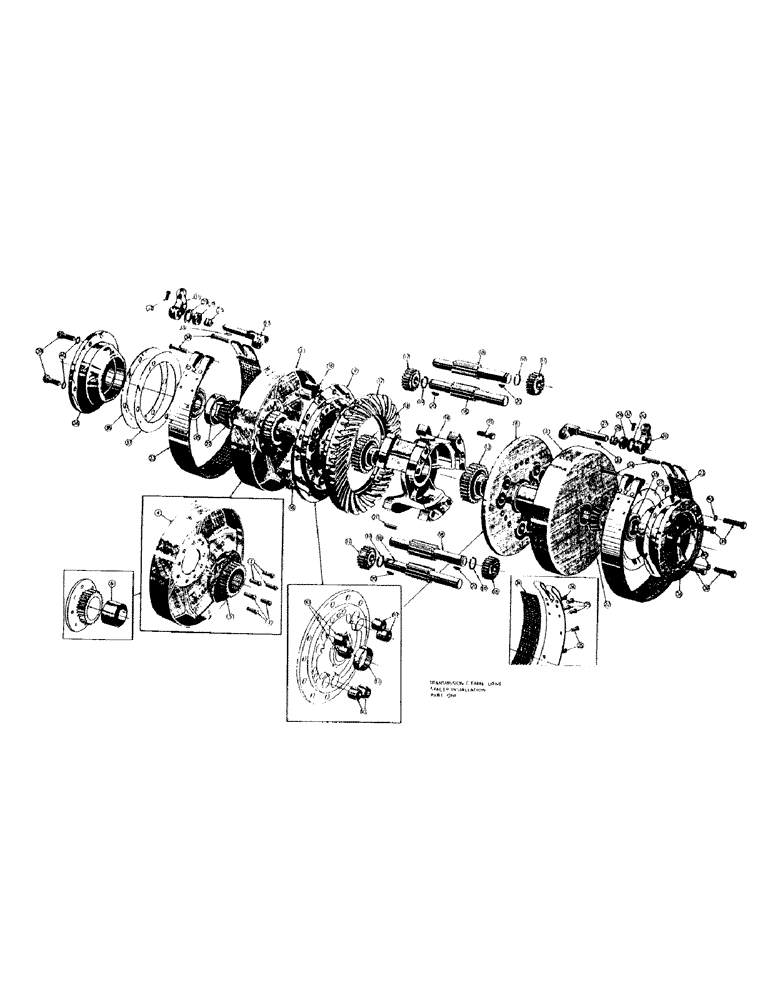

Запчасти Case M3B (008) - TRANSMISSION & FINAL DRIVE SPACER INSTALLATION

D20301

TRANSMISSION ASS'Y. - complete

1шт.

D20533

DIFFERENTIAL & DRUM ASS'Y.

1шт.

3

D20535

DRUM, GEAR & BUSHING ASS'Y. - brake

2шт.

4

NLS

NO LONGER SERVICED

DRUM - brake

1шт.

5

D20534

GEAR & BUSHING ASS'Y.

1шт.

6

11288

BEARING

BUSHING - gear

1шт.

7

14934

RIVET

- brake drum

10шт.

8

NLS

NO LONGER SERVICED

HOUSING ASS'Y. - differential, R.H.

1шт.

9

11410

HOUSING ASS'Y. - differential, L.H.

1шт.

10

CAS11414

HALF-BUSHING

BUSHING - planet pin

6шт.

11

11415

BEARING

BUSHING - axle shaft gear

1шт.

12

R25584

GEAR WHEEL

GEAR - ring

1шт.

13

D20538

GEAR - axle shaft

2шт.

14

NLS

NO LONGER SERVICED

HOUSING - center member

1шт.

15

CAS11424

SCREW

- differential center member

12шт.

NLS

NO LONGER SERVICED

WIRE - lock, center member screw

6шт.

16

NLS

NO LONGER SERVICED

SCREW - ring gear

12шт.

NLS

NO LONGER SERVICED

WIRE - lock, center member screw

1шт.

17

D20536

X

GEAR - planet

6шт.

18

D20422

SHAFT

PINION - planet (Replaces D20537)

6шт.

19

11455

RING, SNAP

RING - snap, planet gear

6шт.

20

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(48759) #9, 3/16" x 3/4"

6шт.

21

CAS11426

SHIM

DOWEL - differential center member

6шт.

22

11445

BEARING ASSY

BEARING ASS'Y. - differential

2шт.

23

NLS

NO LONGER SERVICED

BAND & LINING ASS'Y. - brake

2шт.

24

NLS

NO LONGER SERVICED

LINING - brake band

1шт.

25

NLS

NO LONGER SERVICED

RIVET - brake band lining

18шт.

26

14930

HOSE CLAMP

RIVET - brake band

6шт.

27

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

CAM - brake band

2шт.

28

11439

SPRING

- brake cam

2шт.

29

11431

X

SEAL - oil, brake cam

2шт.

30

11440

WASHER

- brake cam

2шт.

31

11441

BOOM

LEVER - brake, outside

2шт.

32

11433

X

SCREW - adj. arm & end fork

2шт.

33

48760

X

KEY - #11 Woodruff

2шт.

34

11432

BEARING

PIN - brake, Serial Range: band-cam

4шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

4шт.

11416

X

WIRE - lock, adjustment wire

2шт.

35

11430

OIL SEAL

SEAL - oil, differential

2шт.

36

11425

CARRIER

- differential bearing

2шт.

37

11426

SHIM

- differential bearing carrier (.010)

1шт.

38

CAS11427

SHIM

- differential bearing carrier (.005)

2шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(11425 mt'g.) (45107) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

D20301

TRANSMISSION ASS'Y. - complete (Cont'd)

1шт.

41

NLS

NO LONGER SERVICED

CASE ASS'Y. - transmission

1шт.

42

11451

RING, SNAP

RING - snap, c/s rear bearing

1шт.

41823

PLUG - pipe, case drain & oil level (Not shown)

3шт.

43

41825

PLUG - pipe, case filler

1шт.

44

D33873

MAIN SHAFT

1шт.

45

11371

CUP ASSY.

CUP - oil, m/s rear bearing

1шт.

46

11453

TAPERED BEARING

RING - snap, m/s rear bearing

1шт.

47

11449

X

BEARING ASS'Y. - m/s rear

1шт.

48

CAS11363

PINION

GEAR - m/s low & reverse

1шт.

49

35130

SPACER

- m/s gear

1шт.

50

11365

GEAR

- m/s 2nd speed

1шт.

51

11366

GEAR

- m/s constant mesh

1шт.

52

VT2111

X

RING - snap, m/s

1шт.

53

11449

X

BEARING ASS'Y. - m/s front

1шт.

54

51200023

GASKET

- m/s front bearing cap

1шт.

55

11367

SHIM

- m/s front bearing

1шт.

56

11368

SHIM

- m/s front bearing

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing (Not shown) .020" Thk

1шт.

57

11369

X

CAP & OIL SEAL - (Inc. ref. # 59)

1шт.

58

23016

CAP

HHCS & LOCKWASHER - 3/8-16 NC x 1"

3шт.

59

11370

OIL RESERVOIR

SEAL - oil, m/s front bearing

1шт.

60

R25584

GEAR WHEEL

COUNTERSHAFT & BEVEL PINION

1шт.

61

2973202

TAPERED BEARING

BEARING ASS'Y. - c/shaft rear

1шт.

62

NLS

NO LONGER SERVICED

- c/s 1st & reverse

1шт.

63

11374

GEAR

- sliding, 2nd & 3rd

1шт.

63

11374GV

DISC

- sliding, 2nd & 3rd

1шт.

64

11375

GEAR

& BUSHING ASS'Y. - 3rd

1шт.

65

11376

BUSHING

- c/s 3rd gear

1шт.

66

101-21250

SNAP RING,#250, 2.673", Int

RING - snap, c/s front brg

1шт.

67

11378

BELLEVILLE WASHER

- retaining, c/s 3rd gear

1шт.

68

11377

X

WASHER - spring, c/s 3rd gear

1шт.

69

11448

TAPERED BEARING

BEARING ASS'Y. - c/s front

1шт.

70

11380

NUT

- adjusting, c/s front bearing

1шт.

71

51200023

GASKET

- c/s front bearing cap

1шт.

72

11381

CAP

- c/s front bearing

1шт.

73

D20542

X

SCREW - c/s front bearing cap

3шт.

74

34592

SHAFT

ASS'Y. - reverse idler (Inc. ref. # 80)

1шт.

75

11450

TAPERED BEARING

BEARING - reverse idler

2шт.

76

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

77

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

78

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(45053) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

79

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, (48526) Ext Tooth, 3/8"

1шт.

80

D20543

PLUG - reverse idler shaft hole

1шт.

81

11396

ROD

- shift, 1st & reverse

1шт.

82

11397

ROD

- shift, 2nd & 3rd

1шт.

83

11398

PIN

- lock, shift rod, short

1шт.

84

11399

PIN

- lock, shift rod, long

1шт.

85

11400

FORK TEDDER

FORK - shift, 1st & reverse

1шт.

86

NLS

NO LONGER SERVICED

FORK - shift, 2nd & 3rd

1шт.

87

11403

SPRING

- mesh lock

2шт.

88

VT4913

X

BALL - mesh lock

2шт.

89

11456

SPACER- 1st & reverse shift fork

1шт.

90

NLS

NO LONGER SERVICED

COVER & GUIDE ASS'Y. - control

1шт.

91

11389

PLATE

- guide

1шт.

92

11390

X

RIVET - shift guide plate

2шт.

93

11391

GASKET

- control cover

1шт.

94

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(37911 mtg.) (45055) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

95

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

4шт.

96

CAS11393

WASHER

- pivot, gear shift lever

1шт.

97

CAS11454

RING, SNAP

RING - snap, gear shift lever

1шт.

98

37238

LEVER

- gear shift

1шт.

99

31365

PIN

- stake, gear shift lever

1шт.

100

VT2017

X

COVER - dust, gear shift lever (11394)

1шт.

101

O3501AB

X

KNOB - gear shift lever (11395)

1шт.

102

11429

GASKET

- hsg. cover plate

1шт.

103

32258

LATCH

PLATE - hsg. cover

1шт.

104

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(32258 mt'g.) (45082) Hex, 7/16"-14 x 1 1/4", G5, Full Thd

11шт.

105

92-7

LOCK WASHER,7/16"

WASHER, LOCK, (48447) 7/16"

11шт.

106

60766

TUBE ASS'Y. - final drive spacer, R.H.

1шт.

107

60767

TUBE ASS'Y. - final drive spacer. L.H.

1шт.

108

46505

STUD

- 9/16-18 NF x 2-1/2 (D20301 mt'g.)

12шт.

109

11933

GASKET

NUT - lock (9/16-18 NF)

12шт.

110

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16-12 NC x 1" (Top plug) (45131)

4шт.

111

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Front plug) (45157) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

112

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

(Side plug) (45182) Hex, 3/4"-10 x 1 1/4", G5

4шт.

D20540

STUD - transmission case filler (Front)

4шт.

113

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8-18 NF x 3 (60766 & 60767 mt'g) (45764)

5шт.

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

HHCS - 5/8-18 NF x 3-1/2 (60766 & 60767 mt'g.) (45766)

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

(60766 & 60767 mt'g.) (45761) Hex, 5/8"-18 x 2 1/4", G5

1шт.

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(60766 & 60767 mt'g.) (45759) Hex, 5/8"-18 x 1 3/4", G5

3шт.

114

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

10шт.

115

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

10шт.

116

100-1387

SNAP RING,#87, Ext

SEAL - "O" ring, f/d outer flange

2шт.

117

32369

SEAL

-, Serial Range: flange-transmission

2шт.
