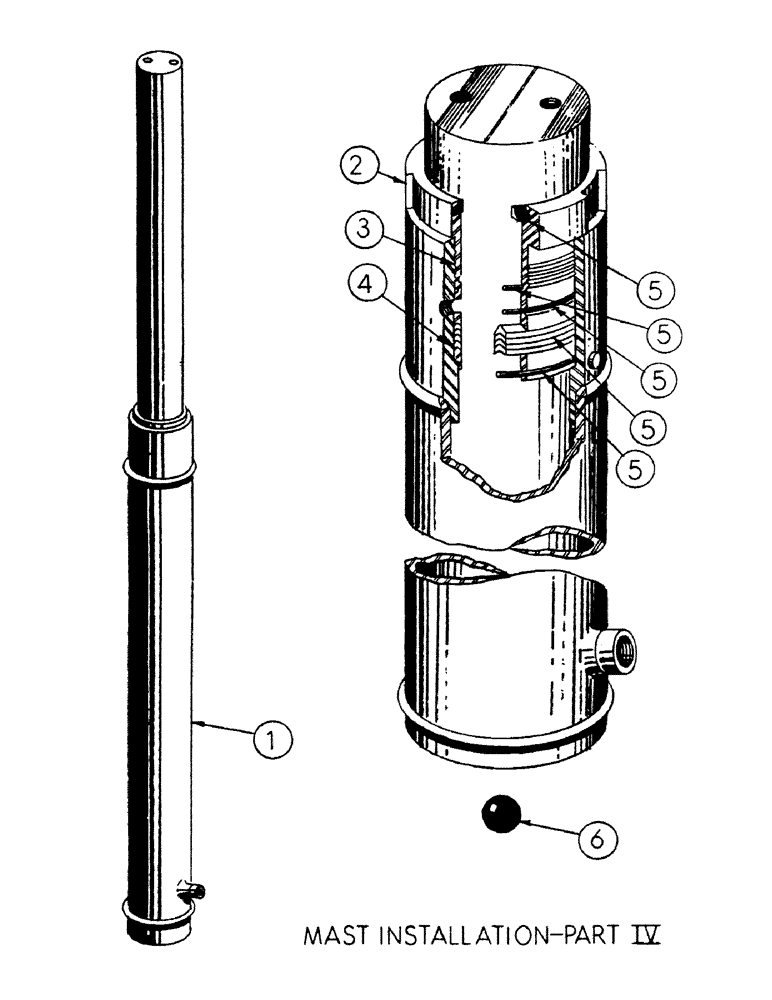

Запчасти Case M3B (092) - MAST INSTALLATION - PART IV

60879

MAST INSTALLATION - complete (Cont'd.)

1шт.

1

60967

CYLINDER ASS'Y. - lift

1шт.

2

60955

NUT

- packing, mast cylinder

1шт.

3

60953

X

SLEEVE - upper

1шт.

4

60954

SLEEVE

- lower

1шт.

5

6010

PACKING

KIT - packing

1шт.

6

60960

X

BALL - 5/8 dia.

1шт.

60880

MAST INSTALLATION - complete (Cont'd.), Serial Range: (Optional-70879)

1шт.

1

60968

CYLINDER ASS'Y. - lift

1шт.

2

60955

NUT

- packing, mast cylinder

1шт.

3

60953

X

SLEEVE - upper

1шт.

4

60954

SLEEVE

- lower

1шт.

5

6010

PACKING

KIT - packing

1шт.

6

60960

X

BALL - 5/8 dia.

1шт.

60882

MAST INSTALLATION - complete (Cont'd.), Serial Range: (Optional-60879)

1шт.

1

60969

CYLINDER ASS'Y. - lift

1шт.

2

60955

NUT

- packing mast cylinder

1шт.

3

60953

X

SLEEVE - upper

1шт.

4

60954

SLEEVE

- lower

1шт.

5

6010

PACKING

KIT - packing

1шт.

6

60960

X

BALL - 5/8 dia.

1шт.

60883

MAST INSTALLATION - complete (Cont'd.), Serial Range: (Optional-60879)

1шт.

1

60970

EXTENSION

CYLINDER ASS'Y. - lift

1шт.

2

60955

NUT

- packing, mast cylinder

1шт.

3

60953

X

SLEEVE - upper

1шт.

4

60954

SLEEVE

- lower

1шт.

5

6010

PACKING

KIT - packing

1шт.

6

60960

X

BALL - 5/8 dia.

1шт.
