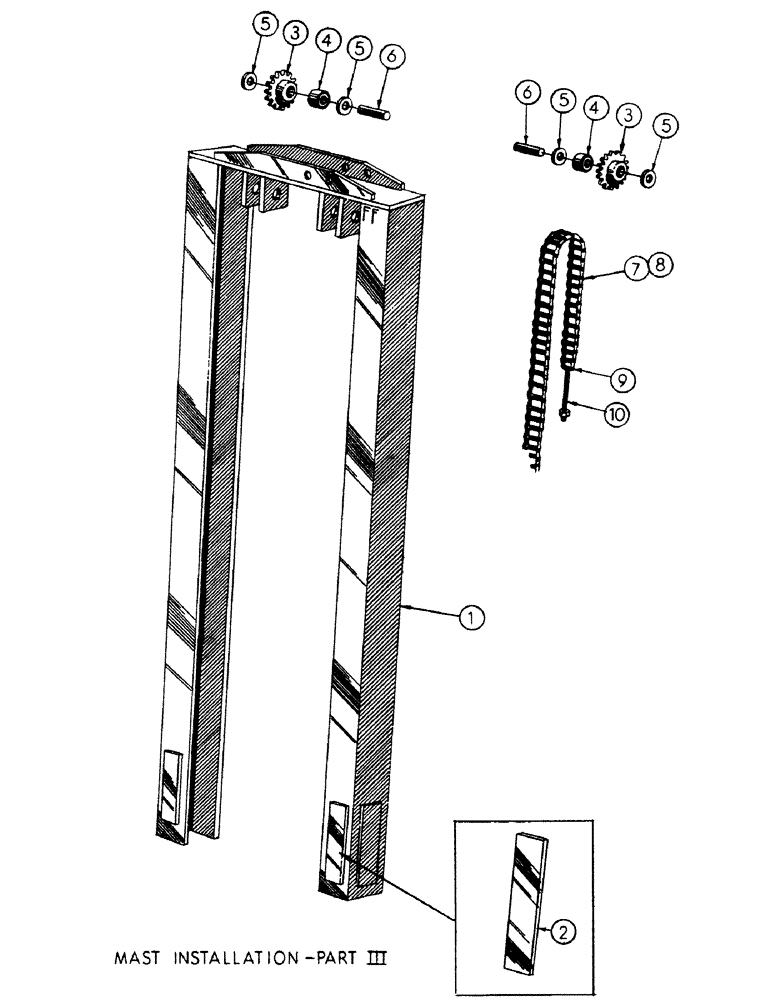

Запчасти Case M3B (090) - MAST INSTALLATION - PART III
№
Артикул
Название
Примечание
Количество
60879
MAST ASS'Y. - complete (Cont'd.)
1шт.
1
60956
CHANNEL ASS'Y. - inner
1шт.
2
60972
STRIP
- wear, bronze
6шт.
3
60942
SPROCKET - master chain
2шт.
4
60943
BEARING ASS'Y. - sprocket
2шт.
5
60944
THRUST WASHER
- thrust, sprocket
4шт.
6
60939
PIN
- sprocket
2шт.
7
60946-86
CHAIN ASS'Y. - lift
2шт.
8
60946
LINK - chain
86шт.
9
60947
X
LINK - connector, chain
1шт.
10
60948
EYEBOLT,1/2" - 20 x 4 5/8"
BOLT - eye, chain anchor
1шт.
60880
MAST ASS'Y. - complete (Cont'd.), Serial Range: (Optional-60879)
1шт.
1
60957
CHANNEL ASS'Y. - inner
1шт.
2
60972
STRIP
- wear, bronze
6шт.
3
60942
SPROCKET - mast chain
2шт.
4
60943
BEARING ASS'Y. - sprocket
2шт.
5
60944
THRUST WASHER
- thrust, sprocket
4шт.
6
NLS
NO LONGER SERVICED
- sprocket
2шт.
7
60946-100
CHAIN ASS'Y. - lift
2шт.
8
60946
LINK - chain
100шт.
9
60947
X
LINK - connector, chain
1шт.
10
60948
EYEBOLT,1/2" - 20 x 4 5/8"
BOLT - eye, chain anchor
1шт.
60882
MAST ASS'Y. - complete (Cont'd.), Serial Range: (Optional-60879)
1шт.
1
60958
CHANNEL ASS'Y. - inner
1шт.
2
60972
STRIP
- wear, bronze
6шт.
3
60942
SPROCKET, mast chain
2шт.
4
60943
BEARING ASS'Y. - sprocket
2шт.
5
60944
THRUST WASHER
- thrust, sprocket
4шт.
6
60939
PIN
- sprocket
2шт.
7
60946-120
CHAIN ASS'Y. - lift
2шт.
8
60946
LINK - chain
120шт.
9
60947
X
LINK - connector, chain
1шт.
10
60948
EYEBOLT,1/2" - 20 x 4 5/8"
BOLT - eye, chain anchor
1шт.
60883
MAST ASS'Y. - complete (Cont'd.), Serial Range: (Optional-60879)
1шт.
1
60959
CHANNEL ASS'Y. - inner
1шт.
2
60972
STRIP
- wear, bronze
6шт.
3
60942
SPROCKET - mast chain
2шт.
4
60943
BEARING ASS'Y. - sprocket
2шт.
5
60944
THRUST WASHER
- thrust, sprocket
4шт.
6
NLS
NO LONGER SERVICED
- sprocket
2шт.
7
60946-120
CHAIN ASS'Y. - lift
2шт.
8
60946
LINK - chain
120шт.
9
60947
X
LINK - connector, chain
1шт.
10
60948
EYEBOLT,1/2" - 20 x 4 5/8"
BOLT - eye, chain anchor
1шт.
Выбрано товаров: 44
