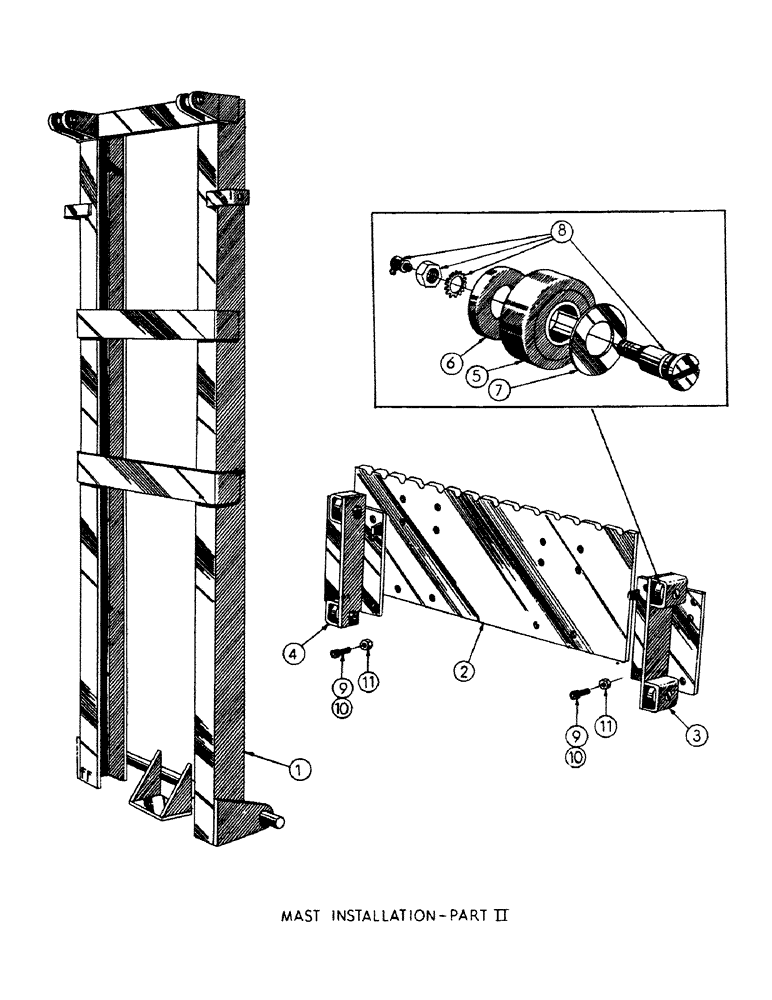

Запчасти Case M3B (088) - MAST INSTALLATION - PART II

60879

MAST INSTALLATION - complete (Cont'd.)

1шт.

1

60949

CHANNEL ASS'Y. - outer

1шт.

2

60945

PLATE - backing, fork

1шт.

3

60940

CARRIAGE ASS'Y. - R.H.

1шт.

4

60941

NUT

CARRIAGE ASS'Y. - L.H.

1шт.

5

60915

BEARING

ROLLER ASS'Y. - load

2шт.

6

60916

WASHER

- spacer, load roller

2шт.

7

60917

THRUST WASHER

WASHER - thrust, load roller

2шт.

8

60914

X

AXLE ASS'Y. - load roller

2шт.

9

461-35020

HEX SOC SCREW,1/2"-13 x 1 1/4"

SCREW - Allen head, 1/2-13 NC x 1-1/4 (60945 mt'g.)

6шт.

10

47320

GUIDE

SCREW - Allen head, 1/2-13 NC x 1-3/4 (60945 mt'g.)

6шт.

11

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam (1/2-13 NC) (47894)

10шт.

60880

MAST INSTALLATION - complete (Cont'd.), Serial Range: (Optional-60879)

1шт.

1

60950

LOCTITE

CHANNEL ASS'Y. - outer

1шт.

2

60945

PLATE - backing, fork

1шт.

3

60940

CARRIAGE ASS'Y. - R.H.

1шт.

4

60941

NUT

CARRIAGE ASS'Y. - L.H.

1шт.

5

60915

BEARING

ROLLER ASS'Y. - load

2шт.

6

60916

WASHER

- spacer, load roller

2шт.

7

60917

THRUST WASHER

WASHER - thrust, load roller

2шт.

8

60914

X

AXLE ASS'Y. - load roller

2шт.

9

461-35020

HEX SOC SCREW,1/2"-13 x 1 1/4"

SCREW - Allen head, 1/2-13 NC x 1-1/4 (60945 mt'g.)

6шт.

10

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - Allen head, 1/2-13 NC x 1-3/4 (60945 mt'g.)

6шт.

11

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam (1/2-13 NC) (47894)

10шт.

60882

MAST INSTALLATION - complete (Cont'd.), Serial Range: (Optional-60879)

1шт.

1

60951

CHANNEL ASS'Y. - outer

1шт.

2

60945

PLATE - backing, fork

1шт.

3

60940

CARRIAGE ASS'Y. - R.H.

1шт.

4

60941

NUT

CARRIAGE ASS'Y. - L.H.

1шт.

5

60915

BEARING

ROLLER ASS'Y. - load

2шт.

6

60916

WASHER

- spacer, load roller

2шт.

7

60917

THRUST WASHER

WASHER - thrust, load roller

2шт.

8

60914

X

AXLE ASS'Y. - load roller

2шт.

9

47319

GUIDE

SCREW - Allen head, 1/2-13 NC x 1-1/4 (60945 mt'g.)

6шт.

10

47320

GUIDE

SCREW - Allen head, 1/2-13 NC x 1-3/4 (60945 mt'g.)

6шт.

11

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam (1/2-13 NC) (47894)

10шт.

60883

MAST INSTALLATION - complete (Cont'd.), Serial Range: (Optional-60879)

1шт.

1

60952

CHANNEL ASS'Y. - outer

1шт.

2

60945

PLATE - backing, fork

1шт.

3

60940

CARRIAGE ASS'Y. - R.H.

1шт.

4

60941

NUT

CARRIAGE ASS'Y. - L.H.

1шт.

5

60915

BEARING

ROLLER ASS'Y. - load

2шт.

6

60916

WASHER

- spacer, load roller

2шт.

7

60917

THRUST WASHER

WASHER - thrust, load roller

2шт.

8

60914

X

AXLE ASS'Y. - load roller

2шт.

9

461-35020

HEX SOC SCREW,1/2"-13 x 1 1/4"

SCREW - Allen head, 1/2-13 NC x 1-1/4 (60945 mt'g.)

6шт.

10

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - Allen head, 1/2-13 NC x 1-3/4 (60945 mt'g.)

6шт.

11

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam (1/2-13 NC) (47894)

10шт.
