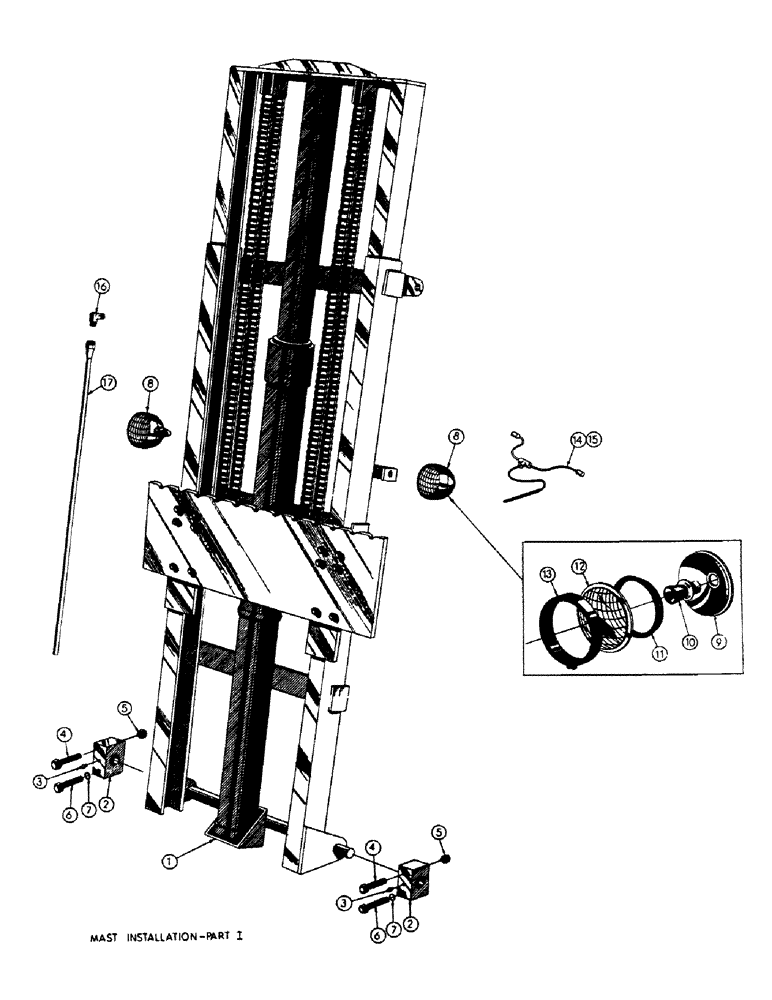

Запчасти Case M3B (086) - MAST INSTALLATION - PART I

1

60879

MAST ASS'Y. - complete, 9 ft.

1шт.

60880

MAST ASS'Y. - complete, 12 ft. 6 in., Serial Range: (Optional-60879)

1шт.

60882

MAST ASS'Y. - complete, 14 ft. 3 in., Serial Range: (Optional-60879)

1шт.

60883

MAST ASS'Y. - complete, 16 ft., Serial Range: (Optional-60879)

1шт.

2

16045

BOOM

BLOCK - trunnion

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

2шт.

4

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4-16 NF x 5 (16045 mt'g.) (45795)

2шт.

5

131-395

LOCK NUT

NUT - lock (3/4-16 NF)

2шт.

6

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

HHCS - 3/4-16 NF x 4 (16045 mt'g.) (45793)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

8

10890

KIT

LIGHT ASS'Y. - head

2шт.

9

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

REFLECTOR - lamp

1шт.

10

30891

CATALOG

BULB - lamp

1шт.

11

10894

GASKET - lamp

1шт.

12

10895

LENS - lamp

1шт.

13

10896

MOULDING ASS'Y. - lamp

1шт.

14

D20408

WIRING ASS'Y. - head light

1шт.

15

32395

SEAL ASSY.

BULLET - wiring

2шт.

16

218-1051

ELBOW,90 Degree, 3/8"-24, 37 Degree x 1/8"-27, NPTF

- 90 degree male

1шт.

17

35666

PROPELLER SHAFT

TUBE ASS'Y. - 9 ft. mast

1шт.

36667

PIN

TUBE ASS'Y. - 12 ft. 6 in. mast

1шт.

35668

TUBE ASS'Y. - 14 ft. 3 in. mast

1шт.

35669

VENTILATION PIPE

TUBE ASS'Y. - 16 ft. mast

1шт.
