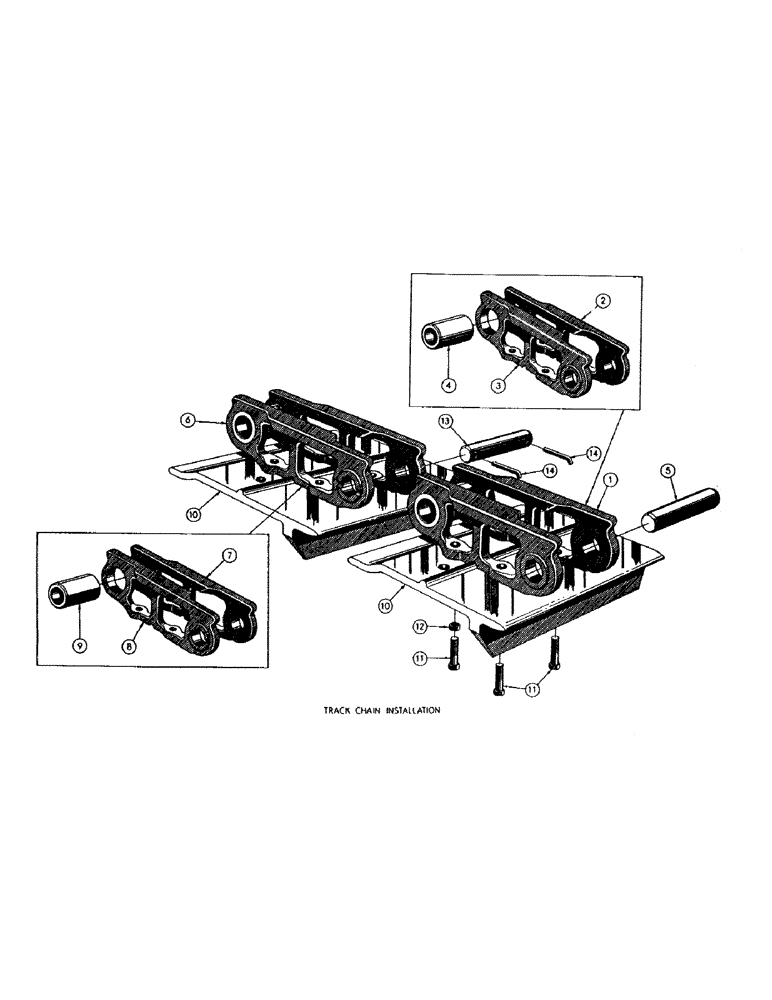

Запчасти Case M3B (084) - TRACK CHAIN INSTALLATION

1

34589

X

UNIT ASS'Y. - track chain

58шт.

2

30638

X

LINK - track, R.H.

1шт.

3

311164C1

CLAMP

- track, L.H.

1шт.

4

32830

BUSHING

- track

1шт.

5

32831

PIN

- track

58шт.

6

34571

KIT

UNIT ASS'Y. - track chain master

4шт.

7

R41050

LINK

- track master , R.H.

1шт.

8

33286

LINK

- track master, L.H.

1шт.

9

NLS

NO LONGER SERVICED

- track

1шт.

10

32881

CAM

GROUSER - track, 12"

62шт.

11

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special (32881 mt'g.)

248шт.

12

48092

NUT - lock

248шт.

13

32994

AXLE PIN

PIN - track master

4шт.

14

CASCAS32995

LOCK - track master pin

8шт.

NOTE:COMPLETE TRACK CONSISTS OF 2-5481 15 UNITS CHAIN, 2-5482 16 UNITS CHAIN

1шт.
