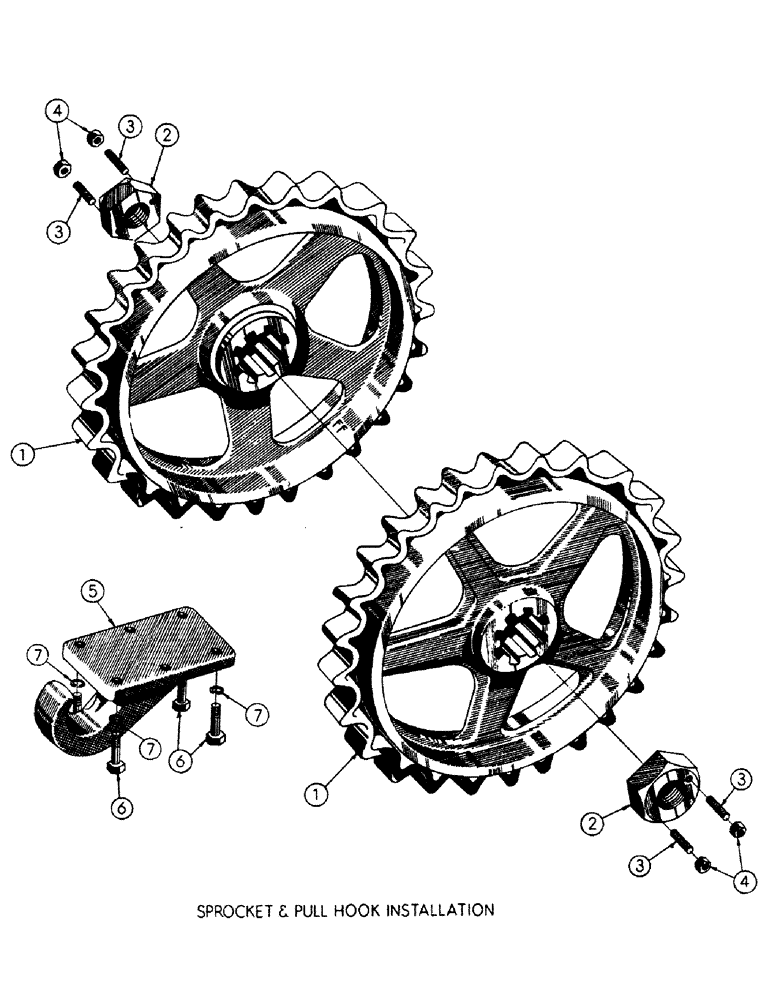

Запчасти Case M3B (082) - SPROCKET & PULL HOOK INSTALLATION

1

60786

SPROCKET - final drive

2шт.

2

11851

LOCK NUT

NUT - lock

2шт.

3

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

SCREW - set, 3/8-16 NC x 1" (47301)

4шт.

4

25-106

NUT,3/8"-16, G5

- reg. SF hex (3/8-16 NC) (47802)

4шт.

5

10940

HOOK

- pull

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(10940 mt'g.) (45107) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.
