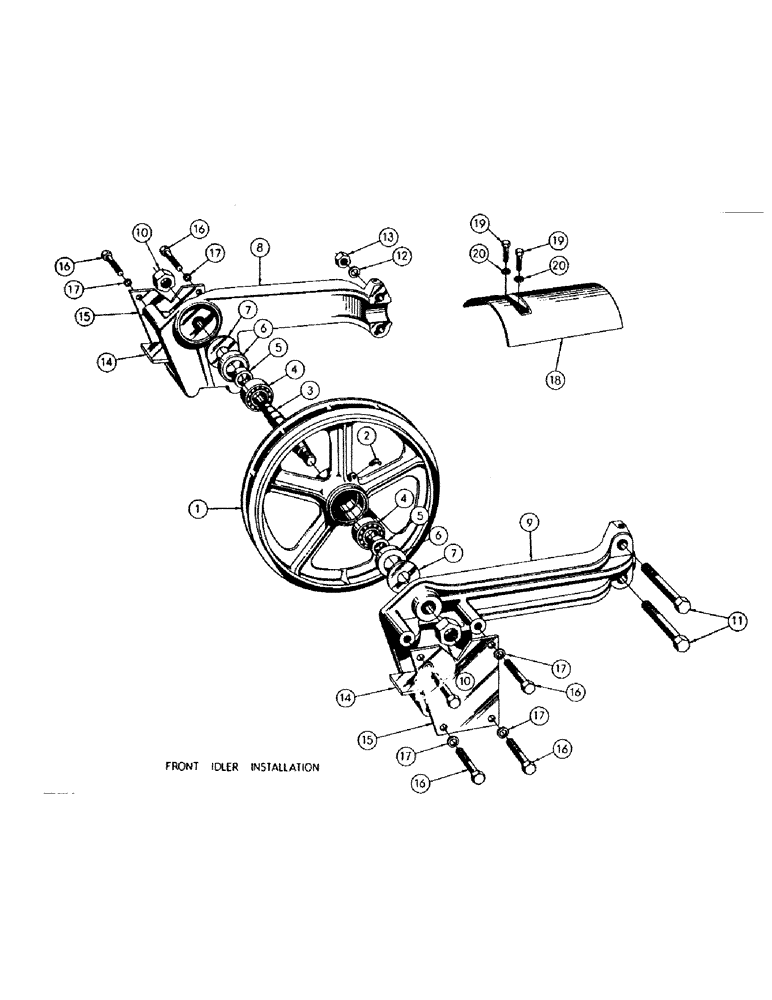

Запчасти Case M3B (080) - FRONT IDLER INSTALLATION

1

32060

WHEEL - idler

2шт.

2

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, 67 1/2 degrees, 1/4 NP (49232)

2шт.

3

32068

SHAFT

2шт.

4

VT2893

X

BEARING - ball

4шт.

5

32051

SPACER

4шт.

6

40633

PLATE

SEAL - oil

4шт.

7

30704

BEARING COVER

4шт.

8

31794

BRACKET - idler wheel, R.H.

2шт.

9

31795

BRACKET - idler wheel, L.H.

2шт.

10

131-300

NUT - lock (1"-14 NF) (17585)

4шт.

11

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8-18 NF x 3-3/4 (31794 to 31795) (45767)

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

13

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

4шт.

14

31797

PLATE

- wear

4шт.

15

31796

PLATE - box

4шт.

16

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2-20 NF x 1-1/2 (31796 mt'g.) (45708)

6шт.

17

92-8

LOCK WASHER,1/2"

(48448) 1/2"

16шт.

18

32074

SHIELD

- sliding

2шт.

19

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8-24 NF x 1/2 (32074 mt'g.) (45652)

4шт.

20

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

4шт.
