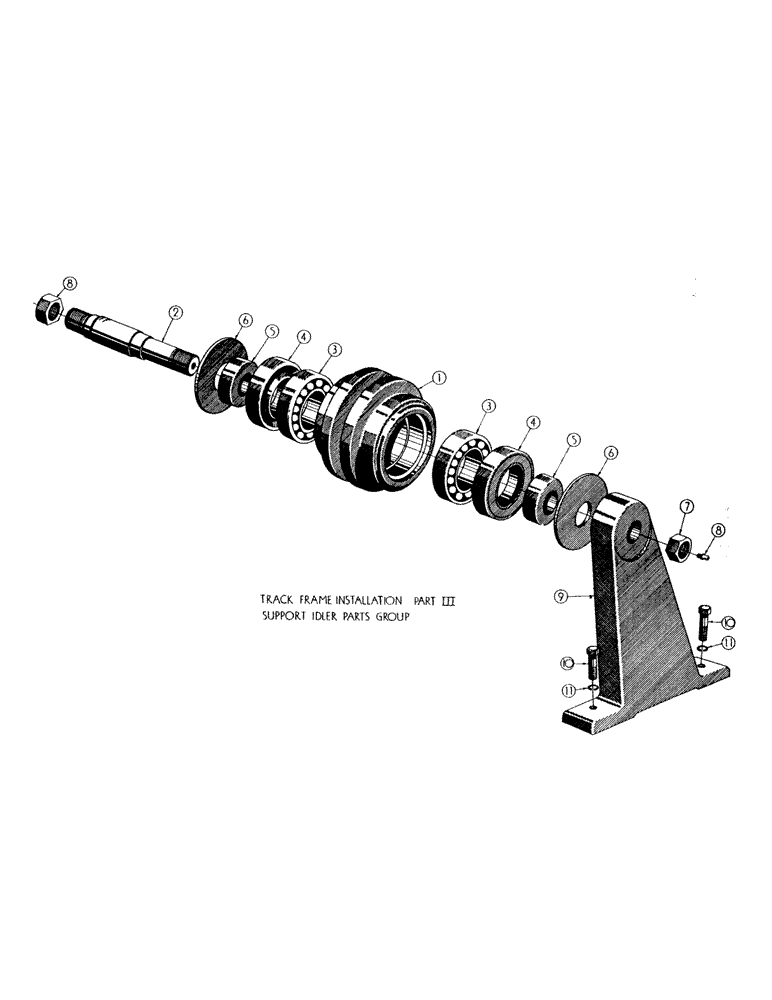

Запчасти Case M3B (078) - TRACK SUPPORT IDLER INSTALLATION

31987

IDLER ASS'Y. - track support

2шт.

1

31163

ROLLER

HUB ASS'Y. - support idler

1шт.

2

30707

SHAFT

- support idler

1шт.

3

VT2893

X

BEARING - ball

2шт.

4

D29138

OIL SEAL

SEAL - oil

2шт.

5

32051

SPACER

- support idler

2шт.

6

30704

BEARING COVER

- support idler

2шт.

7

131-300

NUT - lock (1"-14 NF) (17585)

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.

9

60768

BRACKET - support idler

2шт.

10

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(60768 mt'g.) (45759) Hex, 5/8"-18 x 1 3/4", G5

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.
