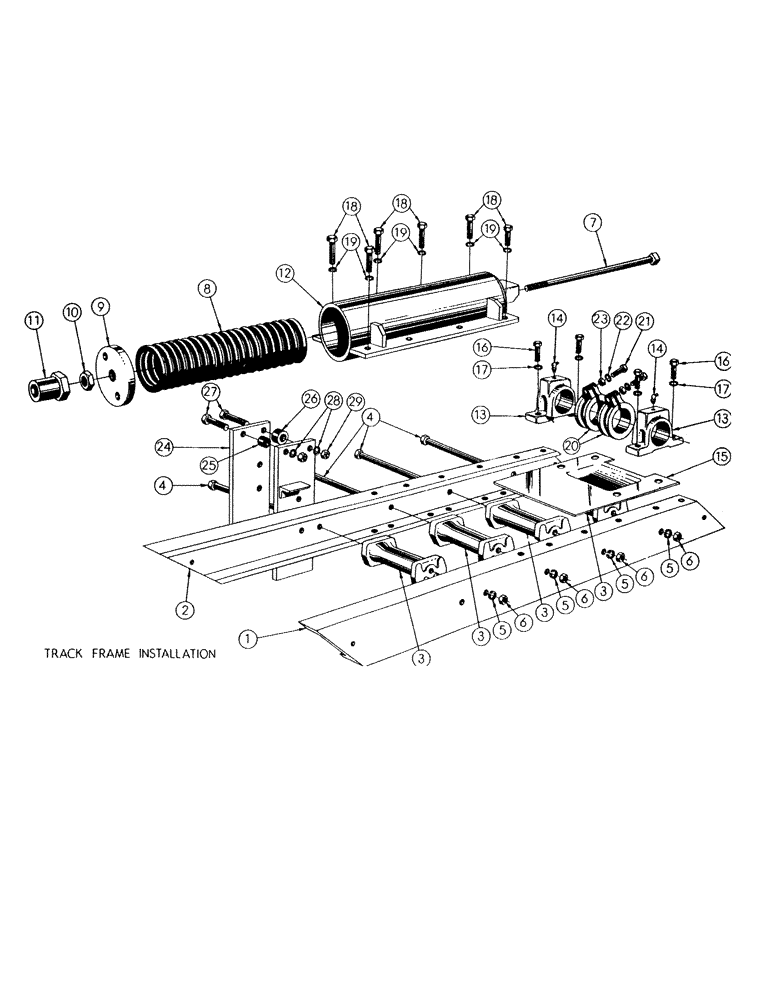

Запчасти Case M3B (074) - TRACK FRAME INSTALLATION

1

31832

CHANNEL - track, outer, R.H.

1шт.

31833

CHANNEL - track, outer, L.H.

1шт.

2

33945

CHANNEL ASS'Y. - track, inner, R.H.

1шт.

33946

COVER PLATE

CHANNEL ASS'Y. - track, inner, L.H.

1шт.

3

NLS

NO LONGER SERVICED

SPACER - track frame

8шт.

4

46493

BOLT

HHMB - 3/4-16 NF x 10-7/8

8шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

6

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

8шт.

60896

SPRING ASS'Y. - recoil

2шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting

1шт.

8

12088

DECAL

SPRING - recoil

1шт.

9

32096

NUT - tension adjusting

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- hex jam (1-14 NF) (48199)

1шт.

11

51200219

NUT

- track adjusting

1шт.

12

60787

HOUSING ASS'Y. - recoil

1шт.

13

15082

COOLER

BLOCK - pivot

4шт.

14

219-49

LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF

FITTING - grease, 67-1/2 degrees, 1/4 NP (49232)

4шт.

15

32542

PAN - mud

2шт.

16

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4-16 NF x 1-3/4 (15082 mt'g.) (45784)

8шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

18

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(60896 mt'g.) (45758) Hex, 5/8"-18 x 1 1/2", G5

12шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

12шт.

20

15101

CLAMP - track mt'g.

4шт.

21

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8-18 NF x 3 (15101 mt'g.) (45764)

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

23

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

4шт.

24

32181

PLATE - track support

2шт.

25

1954811C1

BALL

SPACER

6шт.

26

32332

SPACER

2шт.

27

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8-18 NF x 3 (32181 mt'g.) (45764)

8шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

8шт.

29

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

8шт.
