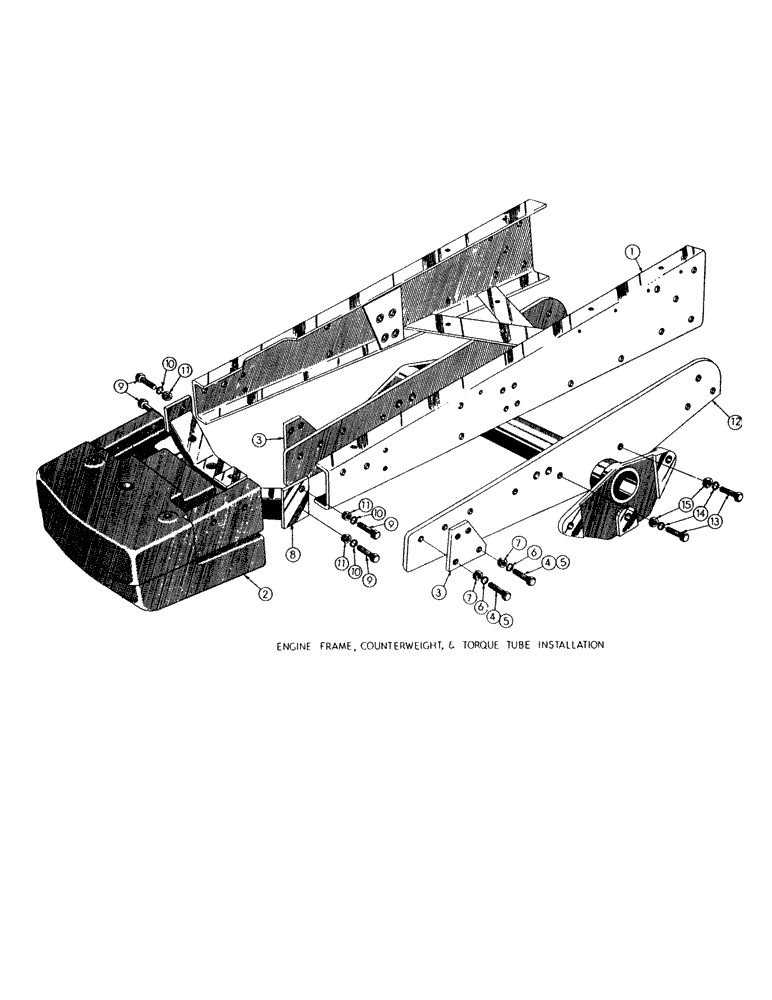

Запчасти Case M3B (006) - ENGINE FRAME, COUNTERWEIGHT & TORQUE TUBE INSTALLATION

1

D20183

FRAME ASS'Y. - engine

1шт.

2

60753

COUNTERWEIGHT - (1000 lbs.)

1шт.

3

D20187

PLATE - attaching

2шт.

4

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4-16 NF x 4-1/2 (60753 & D20187 mt'g.) (45794)

2шт.

5

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS - 3/4-16 NF x 5 (70753 & D20187 mt'g.) (45795)

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

4шт.

8

30470

BRACKET - engine support

1шт.

9

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x 2 (30470 mt'g) (45710)

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

12

D20175

TUBE ASS'Y. - torque

1шт.

13

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(D20175) Hex, 5/8"-18 x 1 3/4", G5

4шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

4шт.
