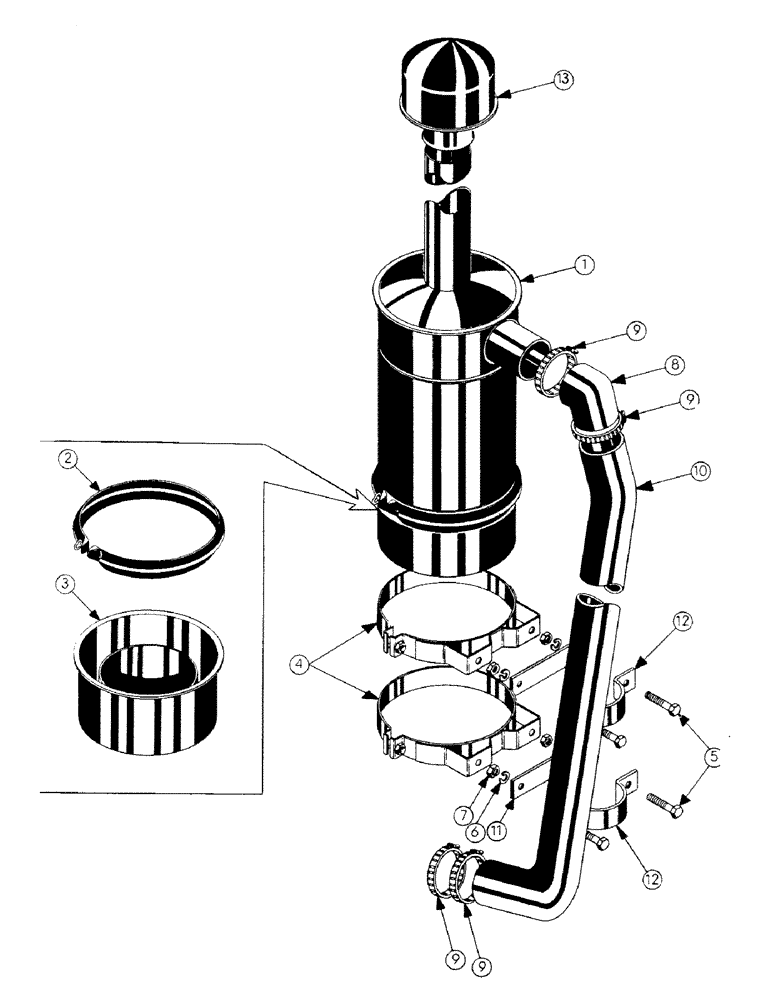

Запчасти Case M3B (070) - AIR CLEANER INSTALLATION

1

34346

AIR CLEANER ASS'Y.

1шт.

2

CLAMP - oil cup retaining

1шт.

3

CUP ASS'Y. - oil

1шт.

4

34347

BAND

- air cleaner mt'g.

2шт.

5

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(34347 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

4шт.

6

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

4шт.

7

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

8

33315

BOLT

ELBOW - hose

2шт.

9

G10807

CLAMP

- hose

4шт.

10

D20212

TUBE - air cleaner

1шт.

11

D20214

STRAP

2шт.

12

D20213

CLAMP - air cleaner tube

2шт.

13

D22685

CAP

CAP - air cleaner inlet

1шт.
