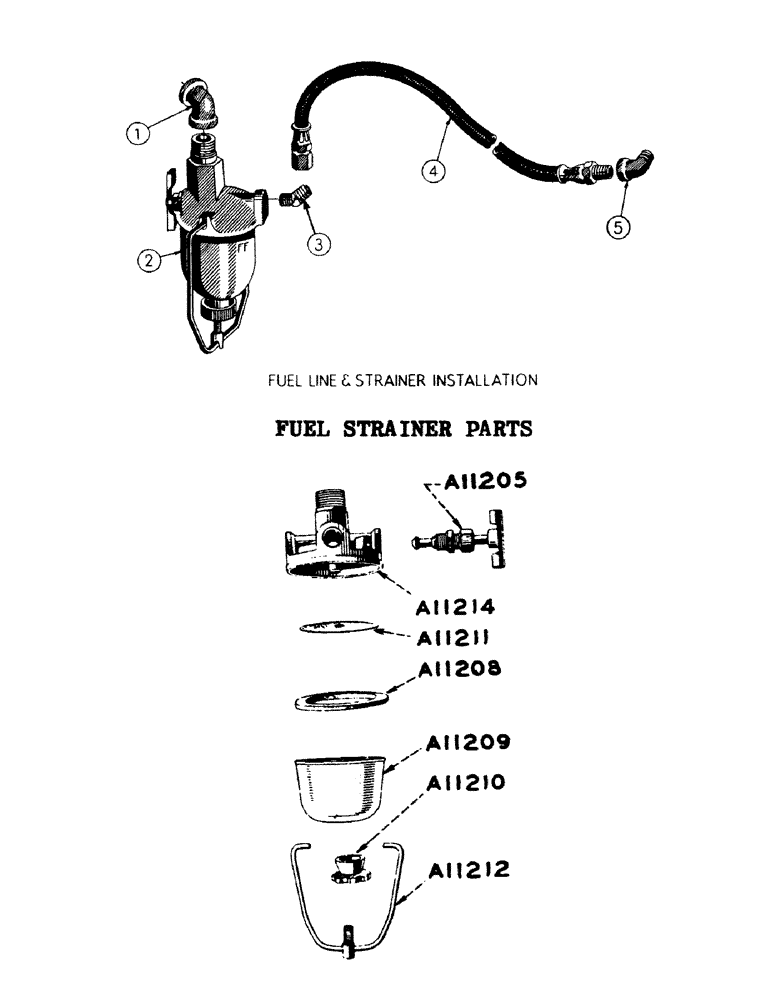

Запчасти Case M3B (068) - FUEL LINE & STRAINER INSTALLATION, FUEL STRAINER ASSY. (03990AB1)

1

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree female, 3/8 NP (41552)

1шт.

2

O3990AB1

X

STRAINER ASS'Y. - fuel

1шт.

3

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree male, 1/8 NP x 7/16-20 NF (50132)

1шт.

4

36566

HOSE ASS'Y. - fuel line

1шт.

5

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (41670) 90º, 1/8"-27, NPT

1шт.

A11205

VALVE

- shut off, fuel strainer ass'y. (03990AB1)

1шт.

A11208

GASKET

- bowl, fuel strainer ass'y. (03990AB1)

1шт.

A11209

BOWL

- glass (Optional to A11213), fuel strainer ass'y. (03990AB1)

1шт.

A11210

ADJUSTER

CUP & NUT - bail, fuel strainer ass'y . (03990AB1)

1шт.

A11211

FILTER SCREEN

SCREEN - strainer, fuel strainer ass'y. (03990AB1)

1шт.

A11212

BAIL

- bowl, fuel strainer ass'y. (03990AB1)

1шт.

A11213

BOWL - metal (Optional to A11209), fuel strainer ass'y. (03990AB1)

1шт.

A11214

HEAD

fuel strainer ass'y. (03990AB1)

1шт.
