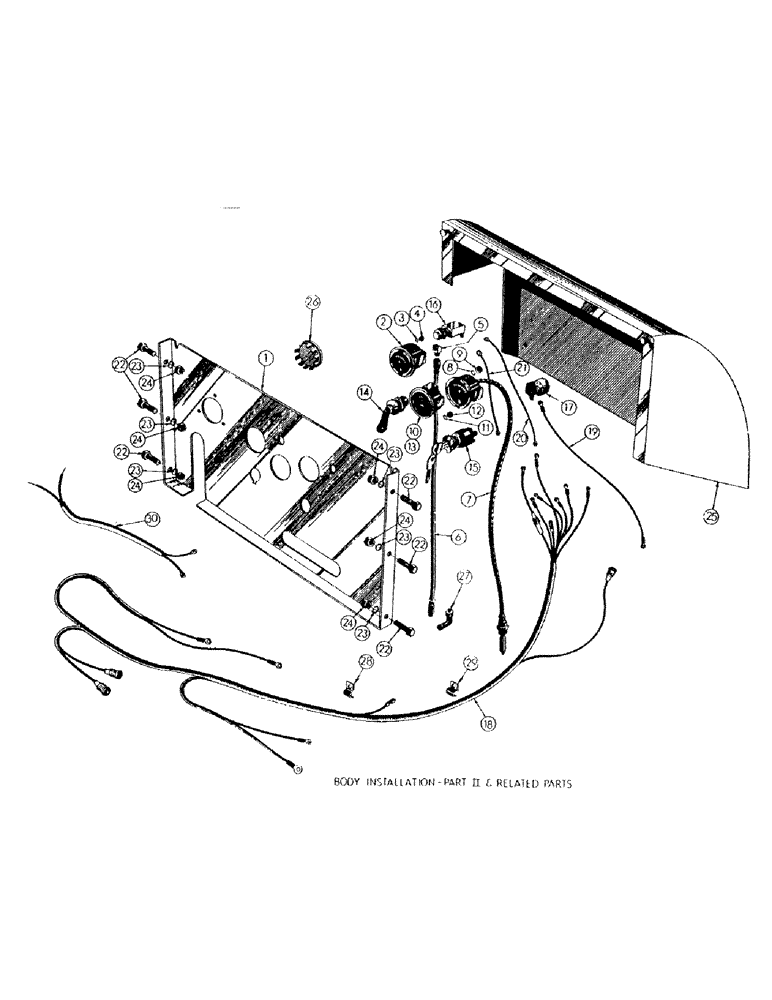

Запчасти Case M3B (066) - DASH PANNEL & INSTRUMENTS

1

60646

PANNEL - dash

1шт.

2

NLS

NO LONGER SERVICED

GAUGE ASS'Y. - oil pressure

1шт.

3

92-3

LOCK WASHER,#10

WASHER, LOCK, (48443) #10

2шт.

4

48080

NUT - reg. SF hex

2шт.

5

50476

SCREW

ELBOW - 90 degree female, 1/4 JIC to 1/8 NP

1шт.

6

36564

HOSE ASS'Y.

1шт.

7

10839

ELECTRICAL GAUGE

INDICATOR ASS'Y. - heat

1шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, (48443) #10

3шт.

9

48080

NUT - reg. SF hex

2шт.

10

10860

X

AMMETER ASS'Y.

1шт.

11

48502

SHIM

WASHER - lock, Shakeproof

2шт.

12

48357

NUT - hex, brass

2шт.

13

10859

TAB SPRING

WASHER - insulation

2шт.

14

10855

X

SWITCH ASS'Y. - headlights

1шт.

15

A10868

DECAL

SWITCH ASS'Y. - ignition lock

1шт.

16

NLS

NO LONGER SERVICED

SWITCH ASSY - push button starter (10864)

1шт.

17

10849

O-RING

SWITCH ASS'Y. - tail light

1шт.

18

30867

HARNESS ASS'Y. - wiring (Inc. ref. #17 & 18)

1шт.

19

60751

BEARING ASSY,139.99mm OD x 28.57mm W

WIRE - jumper, tail light

1шт.

20

30863

WIRE - jumper

1шт.

21

30864

WIRE - jumper

2шт.

22

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(60646 mt'g.) (45654) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

6шт.

25

62087

CARRIAGE BOLT

COVER ASS'Y. - valve

1шт.

26

30842

SPARE PART

PLUG - button (Hour meter hole)

1шт.

27

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (41670) 90º, 1/8"-27, NPT

1шт.

28

49778

CLAMP

CLIP - wiring

1шт.

29

49876

BUMPER

CLIP - wiring

2шт.

30

D20409

WIRING ASS'Y. - tail light

1шт.
