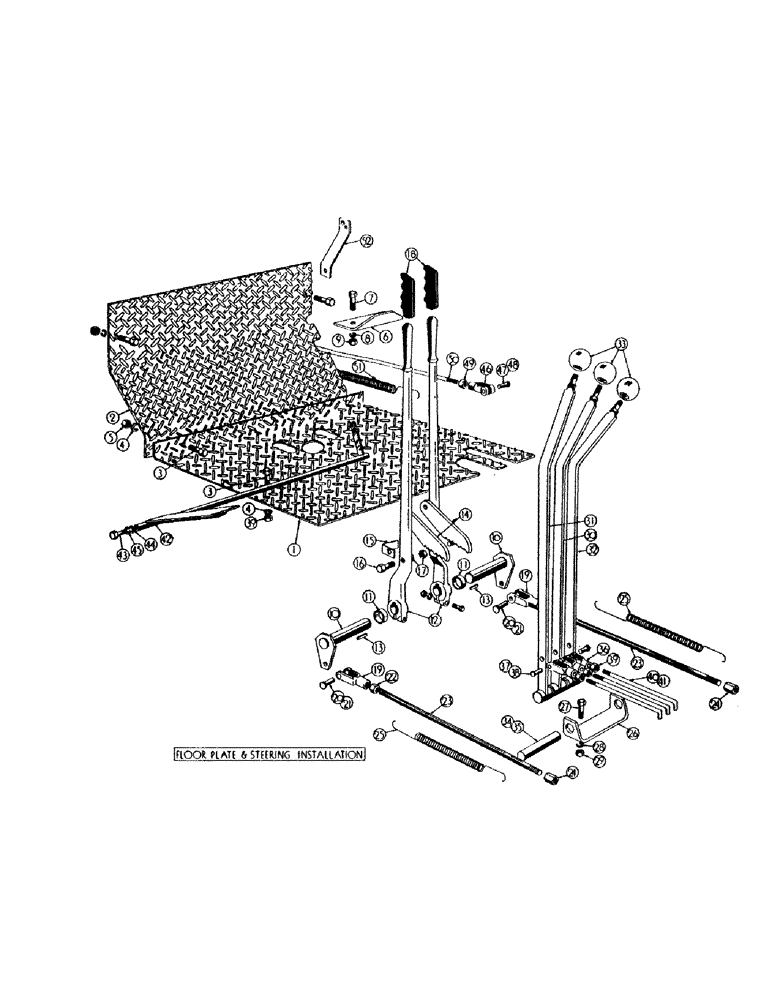

Запчасти Case M3B (062) - FLOOR PLATE & STEERING INSTALLATION

1

D20155

PLATE ASS'Y. - floor, front

1шт.

2

D20156

PLATE ASS'Y. - floor, rear

1шт.

3

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1 (D20155 & 56 mt'g.) (45656)

9шт.

4

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

9шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

6шт.

6

D20157

PLATE - ratchet

1шт.

7

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (D20157 mt'g.) (45706)

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

10

60672

SHAFT & LEVER ASS'Y. - brake

2шт.

11

33603

FLEXIBLE HOSE

SPACER - brake shaft

2шт.

12

31387

LEVER ASS'Y. - brake

2шт.

13

48816

KEY - square, 1/4 x 1

2шт.

14

33604

RATCHET

- brake lever

2шт.

15

60973

CLIP - ratchet catch

2шт.

16

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8-24 NF x 1-1/2 (33604 & 60973 mt'g.) (45658)

2шт.

17

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex jam (3/8-24 NF) (48192)

2шт.

18

31400

CLAMP

GRIP - rubber

2шт.

19

48603

X

YOKE - adjustable

2шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

2шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

23

60180

ROD - steering

2шт.

24

11471

NUT

- steering rod

2шт.

25

11469

SPRING

- brake lever return

2шт.

26

60679

BRACKET - valve lever pivot

1шт.

27

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1 (60679 mt'g.) (45656)

2шт.

28

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

2шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

30

60673

LEVER ASS'Y. - hydraulic

1шт.

31

60674

LEVER ASS'Y. - hydraulic

1шт.

32

60675

LEVER ASS'Y. - hydraulic

1шт.

33

CAS31375

KNOB

BALL - grip

3шт.

34

60680

SHAFT - pivot

1шт.

35

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (48707) 5/32" x 1 1/4"

3шт.

36

48603

X

YOKE - adjustable

3шт.

37

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

3шт.

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

3шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

3шт.

40

60682

ROD - connecting

3шт.

41

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

3шт.

42

D20216

ACCELERATOR ASS'Y.

1шт.

43

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8-24 NF x 7/8 (D20216 mt'g.) (45655)

2шт.

44

95-6

WASHER,3/8"

(48406) 3/8"

2шт.

45

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

2шт.

46

48601

X

YOKE - adjustable

1шт.

47

48661

X

PIN - yoke

1шт.

48

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (48674) 1/16" x 3/4"

1шт.

49

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

1шт.

50

D20218

ROD ASS'Y. - throttle

1шт.

51

11469

SPRING

- throttle return

1шт.

52

60659

GUIDE - throttle

1шт.
