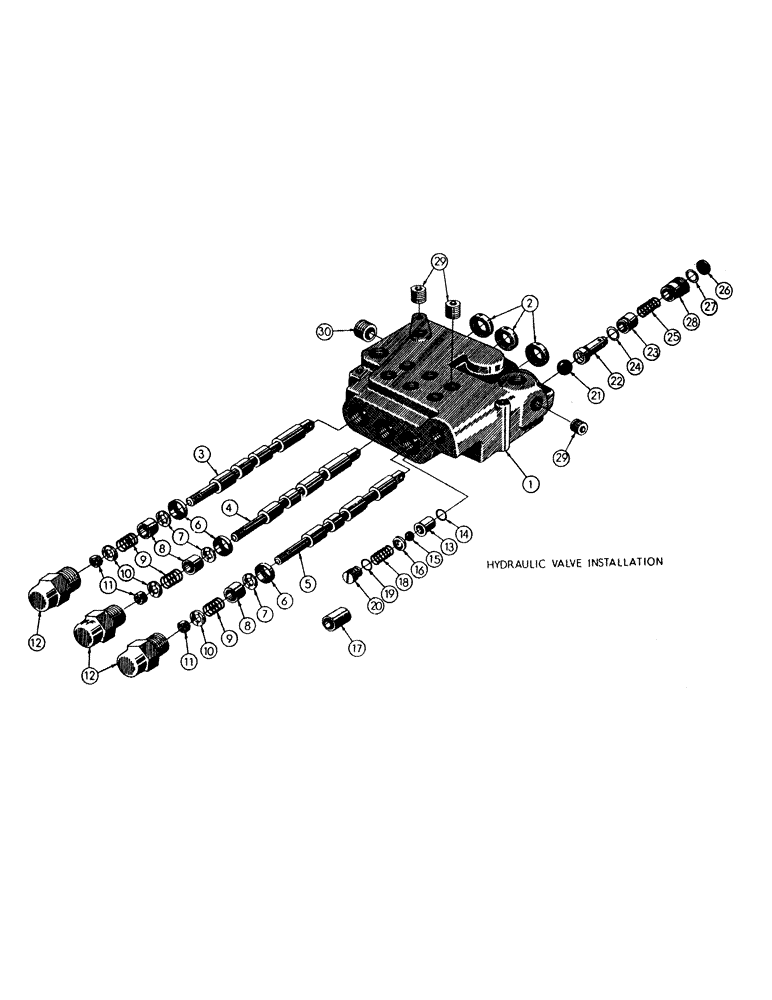

Запчасти Case M3B (060) - HYDRAULIC VALVE INSTALLATION

16600

X

VALVE ASS'Y. - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - hydraulic valve

1шт.

2

16894

SEAL - valve

3шт.

3

16895

SPOOL - type D

1шт.

4

16896

SPOOL - type S

1шт.

5

16897

SPOOL- type P

1шт.

6

16898

GASKET - cap

3шт.

7

16899

WASHER - hydraulic valve

3шт.

8

16900

SPACER - hydraulic valve

3шт.

9

16901

SPRING - centering

3шт.

10

16899

WASHER - hydraulic valve

3шт.

11

16902

NUT - lock

3шт.

12

16903

CAP - hydraulic valve

3шт.

13

16904

SEAT - ball check

1шт.

14

16905

O-RING,0.551" ID x 0.07" Width

RING - seal, ball check seat

1шт.

15

16906

X

BALL - check

1шт.

16

16907

FOLLOWER - ball check

1шт.

17

16908

SLEEVE - ball check

1шт.

18

16909

SPRING - ball check

1шт.

19

16910

X

RING - sealing, ball check cap

1шт.

20

16911

CAP - ball check

1шт.

21

16912

INSERT

BALL - pressure relief

1шт.

22

16913

PLUNGER - relief valve

1шт.

23

16914

SLEEVE - pressure relief

1шт.

24

16915

X

RING - sealing, pressure relief spring

1шт.

25

16916

SPRING - pressure relief

1шт.

26

16917

SHIM

- pressure relief spring

1шт.

27

16918

O-RING

RING - sealing, pressure relief cap

1шт.

28

16919

WASHER

CAP - pressure relief

1шт.

29

41871

X

PLUG - pipe, cts'k. Allen hd., 1/2 NP

3шт.

30

41867

PLATE

PLUG - pipe, cts'k. Allen hd., 3/4 NP

1шт.
