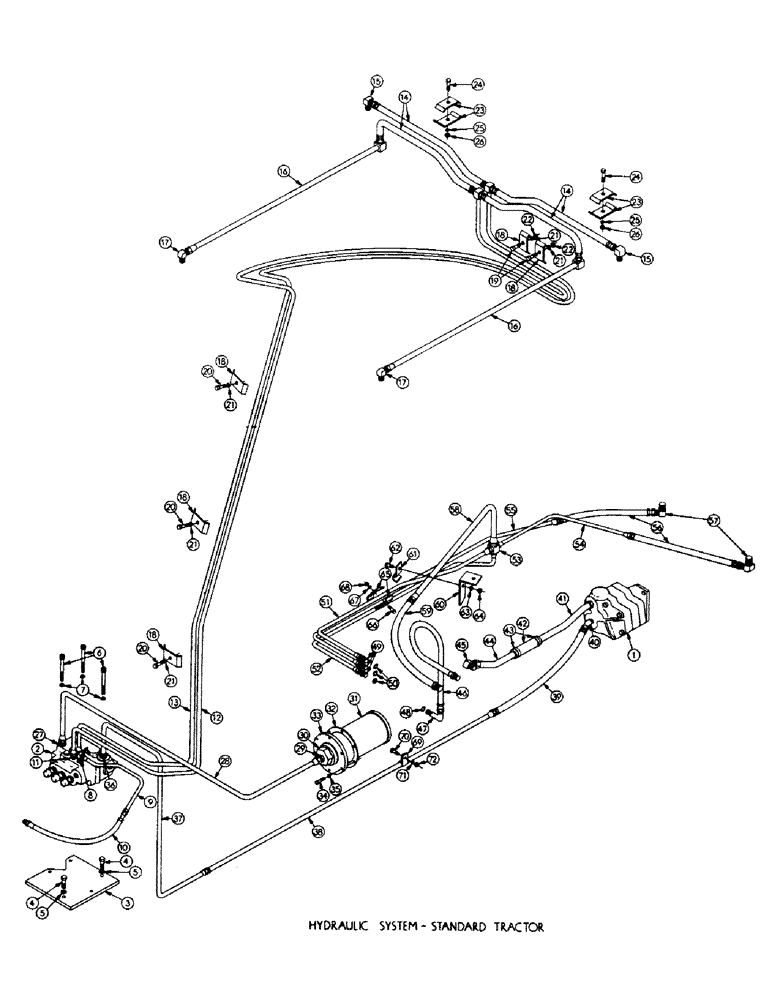

Запчасти Case M3B (054) - HYDRAULIC SYSTEM - STANDARD TRACTOR

1

16860

FLEXIBLE HOSE

PUMP ASS'Y. - hyd. (See Figure 58 for breakdown)

1шт.

2

16600

X

VALVE ASS'Y. - hyd. (See Figure 60 for breakdown)

1шт.

3

60647

PLATE - valve mounting

1шт.

4

13-920

CAPSCREW,Hex, 9/16" - 12 x 1 1/4", Gr 5

HHCS - 9/16-12 NC x 1-1/4 (60647 mt'g.) (45132)

2шт.

5

92-9

BEARING WASHER,9/16"

(48449) 9/16"

2шт.

6

47404

SPINDLE

SHCS - 3/8-16 NC x 3-1/2 (16600 mt'g.)

3шт.

7

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

3шт.

8

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112)

1шт.

9

D20397

TUBE ASS'Y. - valve to mast cylinder

1шт.

10

18993

HOSE ASS'Y. - valve to mast cylinder

1шт.

11

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 JIC to 1/2 NP (50022)

2шт.

12

35355

TUBE ASS'Y. - valve to tilt cylinders

1шт.

13

35356

TUBE ASS'Y. - valve to tilt cylinders

1шт.

14

37219

GEAR

ASS'Y. - valve to tilt cylinders

4шт.

15

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112)

2шт.

16

35672

HYD TUBE

TUBE ASS'Y. - to tilt cylinders front ports

2шт.

17

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 JIC to 1/2 NP (50112)

2шт.

18

32978

PLATE ASSY.

PLATE - clamp (35355 & 35356 mt'g.)

5шт.

19

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (32978 mt'g.) (45633)

2шт.

20

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1 (32978 mt'g.) (45631)

3шт.

21

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

5шт.

22

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

23

32978

PLATE ASSY.

PLATE - clamp (37219 mt'g.)

4шт.

24

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (32978 mt'g.) (45633)

2шт.

25

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

27

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026)

1шт.

28

D20238

TUBE ASS'Y. -, Serial Range: valve-tank

1шт.

29

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026)

1шт.

30

221-69

BUSHING

- outside hex, 1-1/4 NP to 3/4 NP (41659)

1шт.

31

36442

FILTER

ASS'Y.

1шт.

32

36321

GASKET

- filter inlet cap

1шт.

33

38266

ARM

CAP ASS'Y. - filter inlet

1шт.

34

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1 (38266 mt'g.) (45656)

6шт.

35

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

36

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 1/2 NP (50027)

1шт.

37

18970

SEALING RING COLLAR

TUBE ASS'Y. -, Serial Range: valve-pump

1шт.

38

36586

TUBE ASS'Y. -, Serial Range: valve-pump

1шт.

39

36570

HOSE ASSY.

HOSE ASS'Y. -, Serial Range: valve-pump

1шт.

40

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male, 3/4 JIC to 3/4 NP (50146)

1шт.

41

33726

TUBE ASS'Y. - pump to tank 10" Length

1шт.

42

32798

HOSE

- low pressure

1шт.

43

49766

AUGER

CLAMP - hose

2шт.

44

D20236

TUBE ASS'Y. -, Serial Range: pump-tank

1шт.

45

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC to 1" NP (50119)

1шт.

46

D20193

HOSE ASS'Y. - tank to torque converter

1шт.

47

D20071

ELBOW UNION

ELBOW - special

1шт.

48

49401

X

SEAL - "O" ring

1шт.

49

50871

X

CONNECTOR - male, special

3шт.

50

49400

X

SEAL - "O" ring

3шт.

51

19216

TUBE ASS'Y. - torque, Serial Range: converter-tee

1шт.

52

19215

TUBE ASS'Y. - torque, Serial Range: converter-tee

1шт.

53

50000

CROSS - JIC

1шт.

54

D20165

TUBE ASS'Y. -, Serial Range: tee-radiator

1шт.

55

D20163

TUBE ASS'Y. - torque, Serial Range: converter-radiator

1шт.

56

36724

BEARING CONE,19.07mm ID x 16.64mm W

HOSE ASS'Y. - to radiator

2шт.

57

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP (50106)

2шт.

58

D20299

TUBE ASS'Y. -, Serial Range: tee-tank

1шт.

59

D20195

HOSE ASS'Y. -, Serial Range: tee-tank

1шт.

60

D20191

BRACKET - clamp support

1шт.

61

49789

CLAMP

- tube (D20299 mt'g.)

1шт.

62

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4-28 NF x 3/4 (49789 mt'g.)

1шт.

63

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

64

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

1шт.

65

D20234

CLAMP - plate (19216 & D20163 mt'g.)

2шт.

66

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(45632) Hex, 5/16"-24 x 1 1/4", G5

1шт.

67

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

1шт.

68

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

69

49855

CLAMP

- tube (36586 mt'g.)

1шт.

70

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1 (49855 mt'g.) (45631)

1шт.

71

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

1шт.

72

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.
