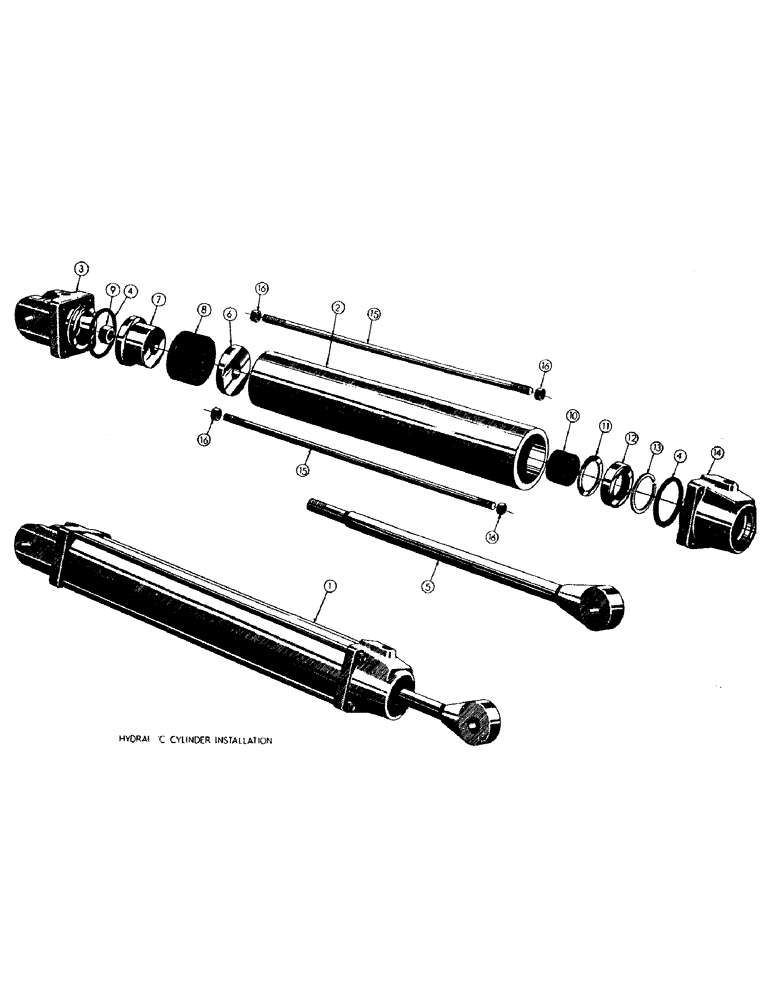

Запчасти Case M3B (052) - HYDRAULIC CYLINDER ASSEMBLY - MAST TILT

1

60898

CYLINDER ASS'Y. - hydraulic

2шт.

2

60904

TUBE - hydraulic cylinder

1шт.

3

17591

END - cylinder

1шт.

4

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring

2шт.

5

60899

END YOKE & PISTON ROD ASS'Y.

1шт.

6

30630

CARTRIDGE

WASHER - retaining

1шт.

7

30631

X

BLOCK - spacer

1шт.

8

17598

PACKING

- piston

1шт.

9

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4-16 NF) (17605)

1шт.

10

17597

PACKING

- rod

1шт.

11

17602

X

WASHER - packing

1шт.

12

17603

WIPER SEAL

- wiper

1шт.

13

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , replaces 17604 2.125", Int, #212

1шт.

14

17592

CAP - end

1шт.

15

60905

ROD - tie

4шт.

16

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (17606)

8шт.

NOTE: BACKUP RING IS PART D24985 11/8/96

1шт.

NOTE:O/RING(BACKUP RING) IS PART D62075

1шт.
