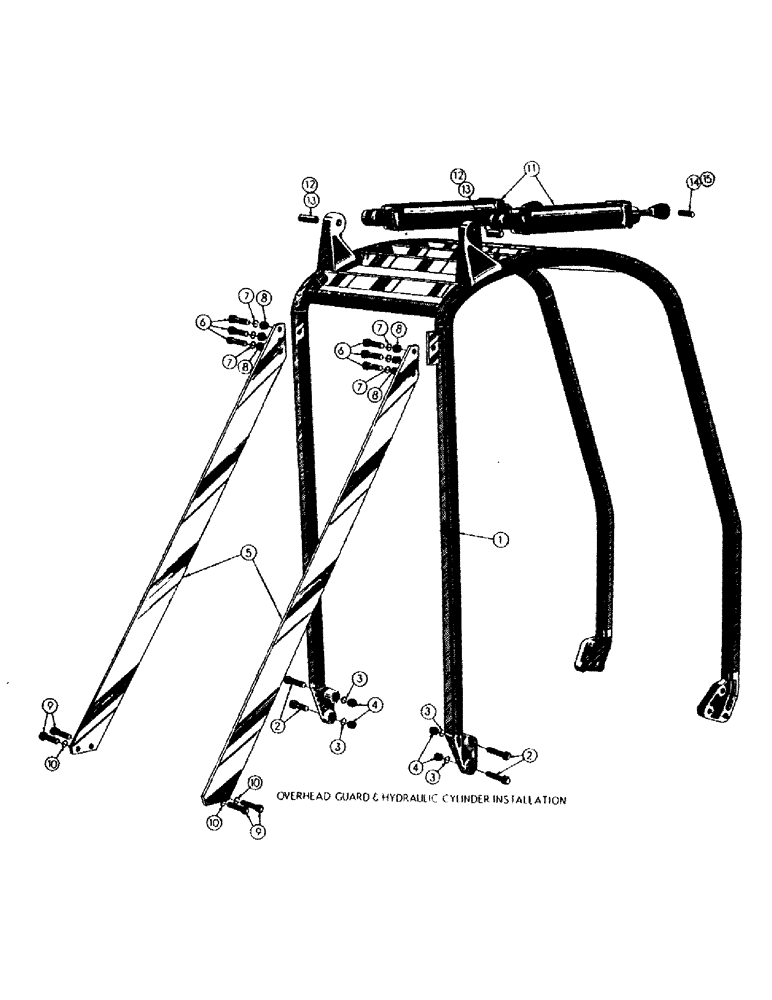

Запчасти Case M3B (050) - OVERHEAD GUARD & HYDRAULIC CYLINDER INSTALLATION

1

60850

TOOL

GUARD ASS'Y. - overhead

1шт.

2

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - 5/8-18 NF x 2-1/2 (60850 mt'g.) (45762)

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (48106)

4шт.

5

60867

STRAP - support

2шт.

6

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4 (60867 mt'g.) (45709)

6шт.

7

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

8

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

6шт.

9

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

HHCS - 3/4-16 NF x 1-1/2 (60867 mt'g.) (45783)

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48452) 5/8"

4шт.

11

60898

CYLINDER ASS'Y. - hyd. (See Figure 52 for breakdown)

2шт.

12

18743

PIN - cylinder mt'g.

2шт.

13

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

14

16726

PIN - cylinder mt'g.

2шт.

15

132-152

PIN

- cotter, 1/4 dia. x 1-3/4 (48738)

4шт.

17631

BUSHING - cylinder mt'g., rod end (not shown)

2шт.
