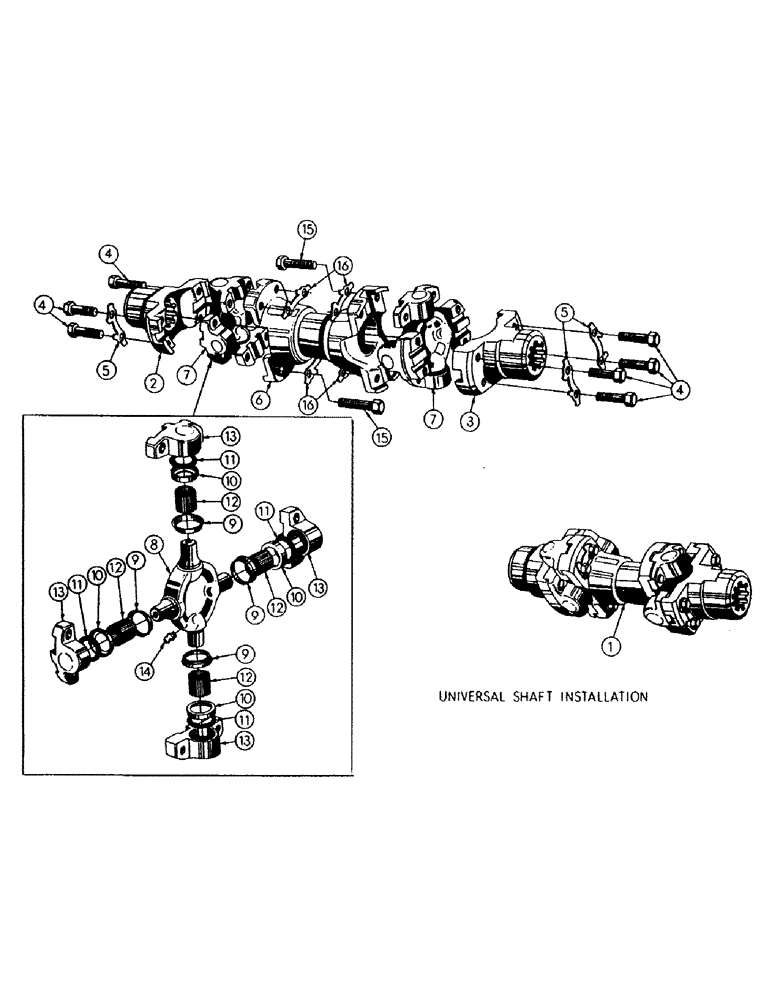

Запчасти Case M3B (048) - UNIVERSAL SHAFT INSTALLATION

1

34632

BUSHING

SHAFT ASS'Y. - universal (Complete)

1шт.

2

31728

YOKE - end fitting

1шт.

3

31729

PRESSURE PIPE

YOKE - end fitting

1шт.

4

31725

SCREW - cap (31728 & 31729 mt'g.)

8шт.

5

NLS

NO LONGER SERVICED

PLATE - lock

4шт.

6

31727

TUBE ASS'Y. - universal

1шт.

7

5996

DIFF. SPIDER

BEARING & JOURNAL KIT

2шт.

8

31717

SPIDER - universal

1шт.

19329

BEARING ASSY

BEARING ASS'Y. - universal

4шт.

9

NSS

NOT SOLD SEPARAT

SHIELD - dust

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - cork

1шт.

12

NSS

NOT SOLD SEPARAT

ROLLER - bearing

25шт.

13

NSS

NOT SOLD SEPARAT

BEARING - universal

1шт.

14

31724

X

FITTING - grease

1шт.

15

31725

SCREW - cap (5996 mt'g.)

8шт.

16

NLS

NO LONGER SERVICED

PLATE - lock

4шт.

132-80

HARDWARE

PIN - cotter, 5/32 dia. x 2-1/2 (48714)

1шт.
