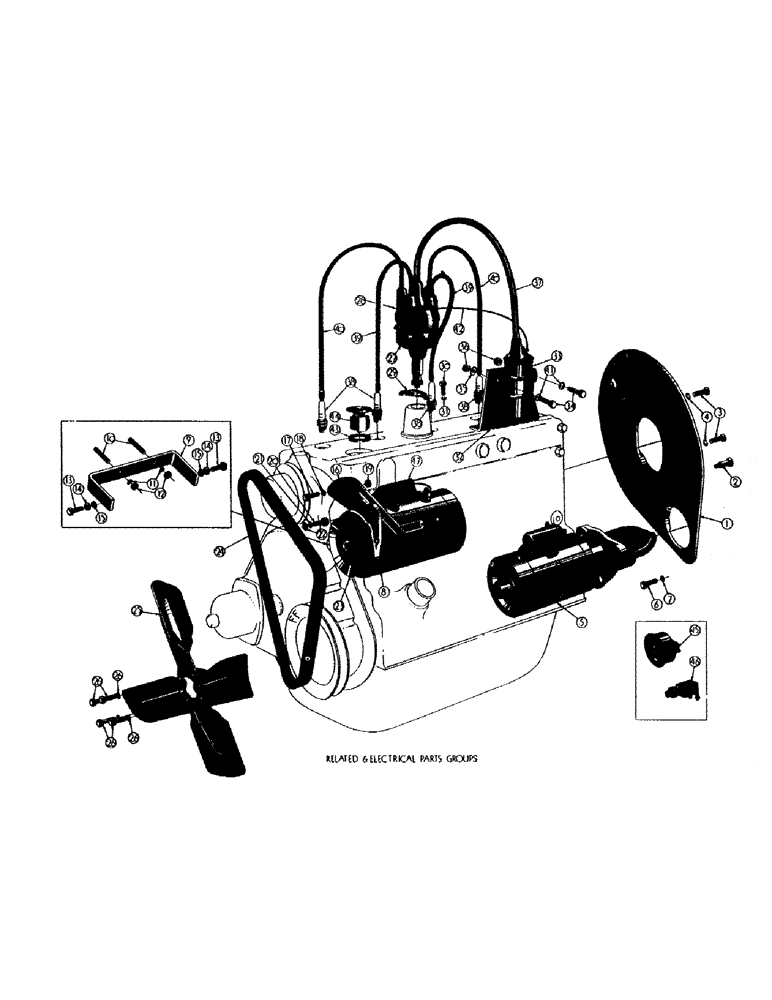

Запчасти Case M3B (042) - GASOLINE ENGINE INSTALLATION, RELATED & ELECTRICAL PARTS, PARTS NOT SHOWN

(1 thru 4) RESERVED

1шт.

5

11173

DECAL

SPARE PART STARTER ASSY

1шт.

SWITCH - solenoid starter

1шт.

6

31174

SPARE PART STUD - 3/8"-16 NC x 2-1/2" (11173 mt'g.)

3шт.

7

92-6

LOCK WASHER,3/8"

(48446)

3шт.

30438

X

NUT NUT - hex (3/8"-16 NC)

3шт.

8

30455

X

GENERATOR ASSY - (Inc. ref. # 47)

1шт.

9

10027

BRACKET - generator

1шт.

10

VT4508

SPARE PART STUD - 3/8"-16 NC x 1-1/4" (10027 mt'g.) (10075)

2шт.

11

92-6

LOCK WASHER,3/8"

(48446)

2шт.

12

30438

X

NUT NUT - hex (3/8"-16 NC)

2шт.

13

10033

SPARE PART SCREW - special, 5/16"-24 NF x 1-1/8" (30455 mt'g.)

2шт.

14

48161

SPARE PART (5/16"-24 NF)

2шт.

15

30362

NUT - pal, 5/16"

2шт.

16

30461

CONNECTION

STRAP - generator adjusting

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(30461 mtg.) (45056)

1шт.

18

92-6

LOCK WASHER,3/8"

(48446)

1шт.

19

30438

X

NUT NUT - hex (3/8"-16 NC)

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(30455 mtg.) (45031)

1шт.

21

48465

BUSHING

WASHER - heavy sec. lock

1шт.

22

RESERVED

1шт.

23

30454

PULLEY - generator

1шт.

24

11585

COIL

BELT - fan drive

1шт.

25

VT2180

X

FAN

1шт.

26

10314

LINING

SCREW & LOCKWASHER ASSY

4шт.

27

10012

DISTRIBUTOR ASSY

1шт.

28

RESERVED

1шт.

29

A10580

TOOL

ARM ASSY - distributor advance

1шт.

30

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(10580 mt'g.) (45003)

1шт.

31

92-4

LOCK WASHER,1/4"

(48444)

1шт.

32

10034

SUPPORT ASSY - coil

1шт.

33

10007

SPARE PART COIL ASSY

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(10007 mt'g.) (45002)

2шт.

35

95-4

WASHER,1/4"

(48404)

2шт.

36

47860

NUT - light SF hex (1/4-20 NC)

2шт.

37

10100

SCREW

CABLE -, Serial Range: coil-distributor

1шт.

38

10008

X

SPARK PLUG SPARK PLUG

4шт.

10099

WASHER

SPARK PLUG - (Hot spark), Serial Range: (Optional-10008)

4шт.

39

10041

O-RING

CABLE - dist. to spark plug (Short)

2шт.

40

10040

CABLE - dist. to spark plug (Long)

2шт.

41

92-4

LOCK WASHER,1/4"

(48444)

2шт.

42

10018

WIRE ASSY -, Serial Range: dist.-coil

1шт.

43

NLS

NO LONGER SERVICED

RING - thermostat adapter

1шт.

44

10561

FITTING

THERMOSTAT ASSY

1шт.

45

REF

INSTRUCTION

AMMETER ASSY - (See Figure 66)

1шт.

46

REF

INSTRUCTION

SWITCH - push button starter (See Figure 66)

1шт.

47

10019

X

VOLTAGE REGULATOR REGULATOR ASSY - voltage

1шт.

30360

SPARE PART CLIP - gen. adj. strap, parts not shown

1шт.

11482

SPACER - starter mounting, parts not shown

1шт.

60766

SPACER - engine mt'g., front, parts not shown

1шт.

92-10

LOCK WASHER,5/8"

(Engine mt'g.) (48450), parts not shown

1шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(Engine mt'g.) (45159), parts not shown

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Engine mt'g.) (45108), parts not shown

8шт.

92-8

LOCK WASHER,1/2"

(Engine mt'g.) (48448), parts not shown

8шт.
