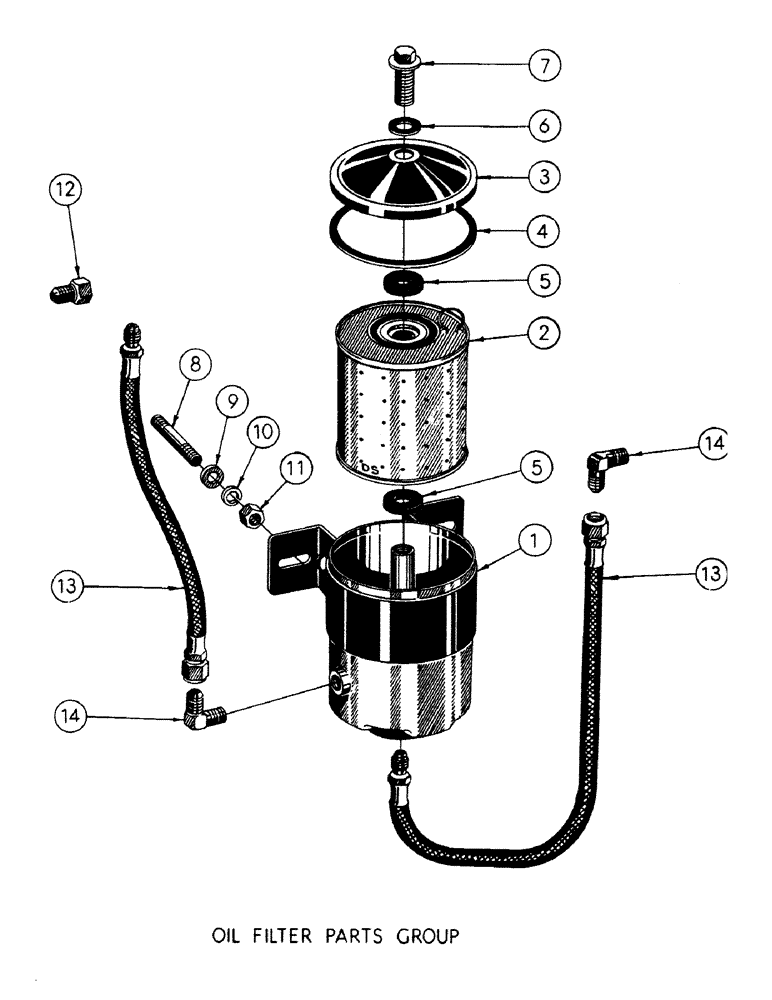

Запчасти Case M3B (040) - GASOLINE ENGINE INSTALLATION, OIL FILTER PARTS

31176

OIL FILTER ASS'Y.

1шт.

1

RESERVED

1шт.

2

10017

CARTRIDE - oil filter

1шт.

3

10047

PINION

COVER - oil filter

1шт.

4

10048

GASKET - oil filter cover

1шт.

5

10049

GASKET - oil filter cartridge

2шт.

6

10054

COLLAR

GASKET - oil filter cover screw

1шт.

7

11921

COLLAR

SCREW - oil filter cover

1шт.

8

10619

STUD - 5/16-18 NC x 1 (31176 mt'g.)

2шт.

9

10620

FITTING

WASHER - plain, oil filter mt'g. stud

2шт.

10

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

11

47861

KNOB

NUT - hex, oil filter mt'g. stud

2шт.

12

41640

X

BUSHING -, Serial Range: 1/4-1/8

1шт.

13

10621

HOSE - flexible oil

2шт.

14

50464

X

ELBOW - 90 degrees, 1/8 NP to 1/4 JIC

2шт.
