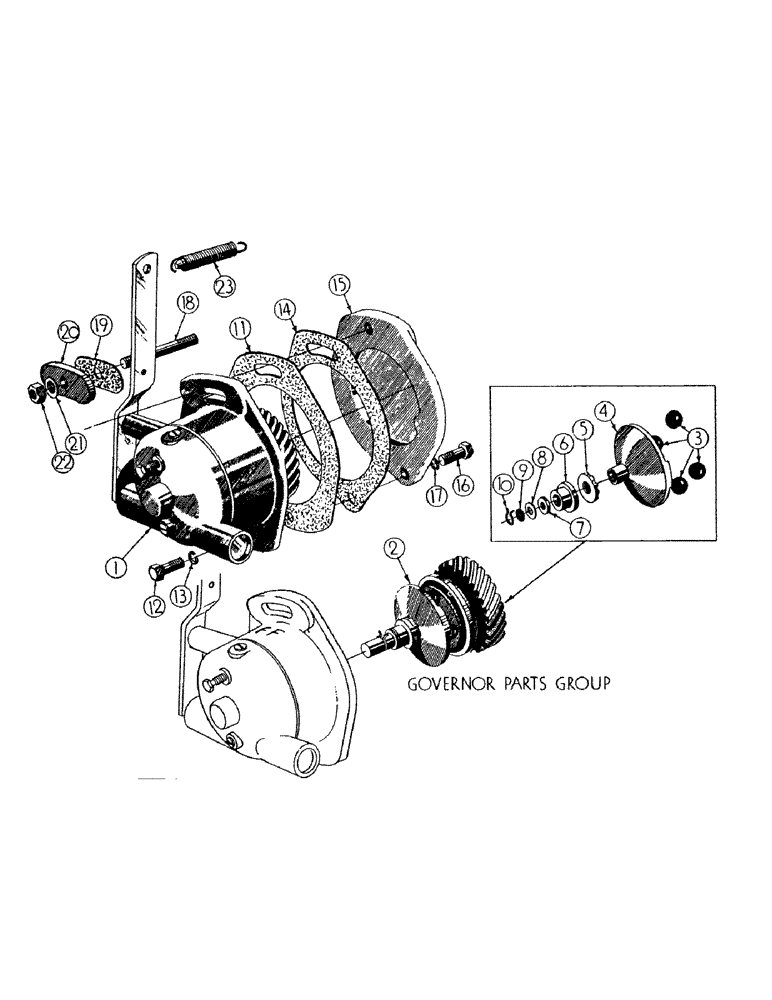

Запчасти Case M3B (038) - GASOLINE ENGINE INSTALLATION, GOVERNOR PARTS

1

10456

GOVERNOR ASS'Y.

1шт.

2

10458

SEALING RING

WORKS ASS'Y. - governor

1шт.

3

VT3268

BALL - governor, 3/4 dia. (10474)

4шт.

4

10465

SEALING RING COLLAR

RACE - upper

1шт.

5

10466

BEARING - thrust

1шт.

6

10467

SEALING RING COLLAR

BASE - governor lever fork

1шт.

7

10468

WASHER - thrust, lever fork base

1шт.

8

10469

WASHER - thrust, lever fork base

1шт.

9

10472

SEALING RING COLLAR

PLATE - thrust

1шт.

10

10470

CLIP - governor works retaining

1шт.

11

10480

GASKET - governor (See Figure 108 for kits)

1шт.

12

10295

BUSHING

SCREW - 3/8-16 NC x 1-1/8 (10456 mt'g.)

1шт.

13

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

1шт.

14

VT3694

X

GASKET - mag. hole cover (See Figure 108 for kits) (10324)

1шт.

15

10321

COVER - mag. hole

1шт.

16

10323

HHCS - 3/8-16 NC x 1-3/8 (10321 mt'g.)

1шт.

17

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

1шт.

18

10322

STUD - 3/8-16 NC x 3-7/8 (10456 mt'g.)

1шт.

19

10482

BUSHING

GASKET - governor flange (See Figure 108 for kits)

1шт.

20

10481

PLATE - governor gasket

1шт.

21

10498

FLANGE

WASHER - copper

1шт.

22

30438

X

NUT - hex (3/8-16 NC)

1шт.

23

10022

SPRING

ASS'Y. - governor

1шт.
