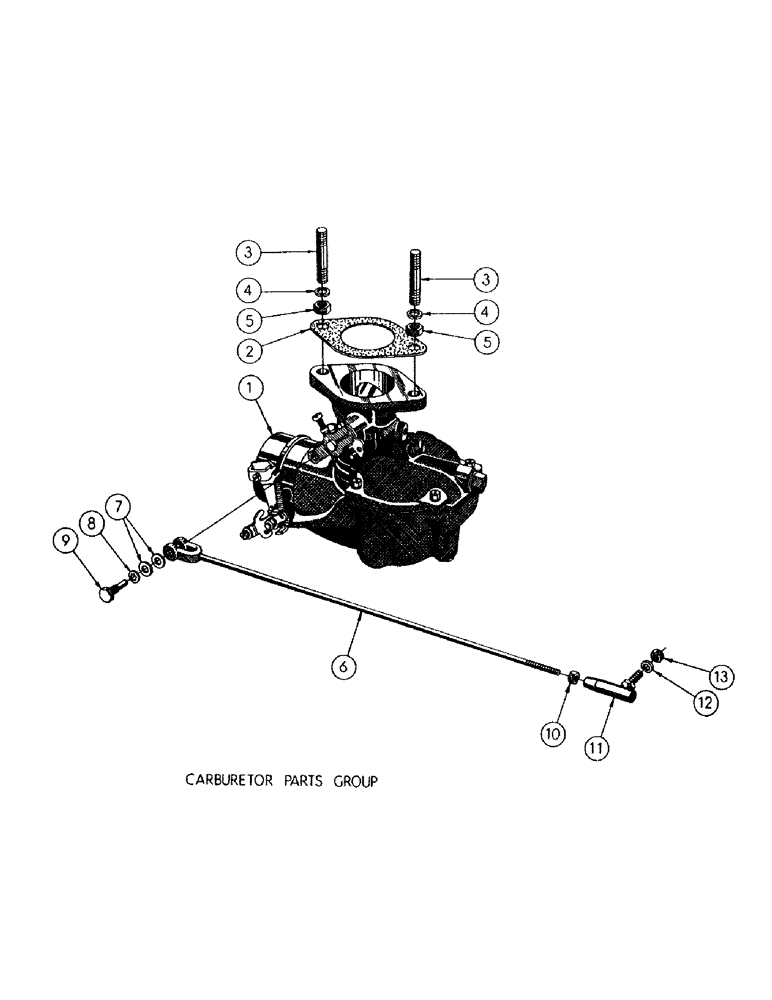

Запчасти Case M3B (036) - GASOLINE ENGINE INSTALLATION, CARBURETOR PARTS GROUP

1

11174

BRACKET

CARBURETOR ASS'Y

1шт.

2

30160

GASKET

GASKET - carburetor to manifold (See Figure 108 for kits)

1шт.

3

10227

STUD - 3/8-16 NC x 1-7/16 (11174 mt'g.)

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

2шт.

5

30438

X

NUT - hex (3/8-16 NC)

2шт.

6

10127

ROD ASS'Y. -, Serial Range: governor-carburetor

1шт.

7

10032

NUT

WASHER - plain

2шт.

8

48525

X

WASHER - lock

1шт.

9

10029

SCREW - yoke end

1шт.

10

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

1шт.

11

10031

JOINT - ball

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

13

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

1шт.
