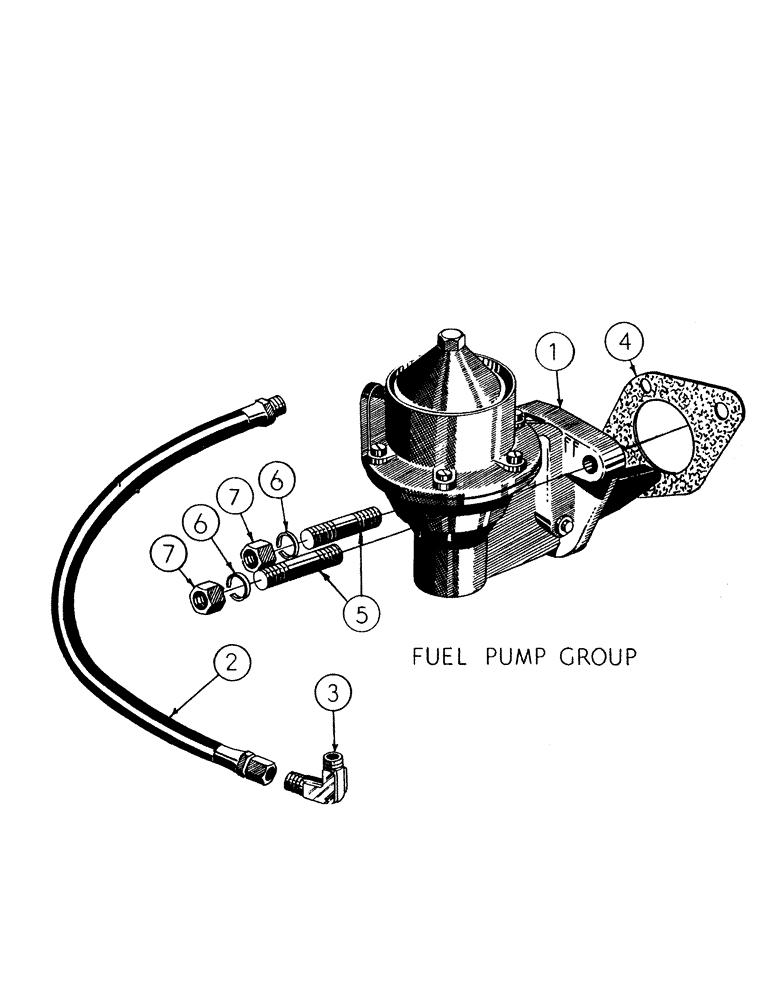

Запчасти Case M3B (034) - GASOLINE ENGINE INSTALLATION, FUEL PUMP PARTS

1

10023

PUMP - fuel

1шт.

2

10026

HOSE ASS'Y. - fuel, Serial Range: pump-carburetor

1шт.

3

50464

X

ELBOW - 90 degree street, 1/8 NP

1шт.

4

10123

GASKET - fuel pump (See Figure 108 for kits)

1шт.

5

31173

STUD - 5/16-18 NC x 1-1/2 (10023 mt'g)

2шт.

6

92-6

LOCK WASHER,3/8"

WASHER - heavy sec. lock

2шт.

7

47861

KNOB

NUT - light SF hex (5/16-18 NC)

2шт.
