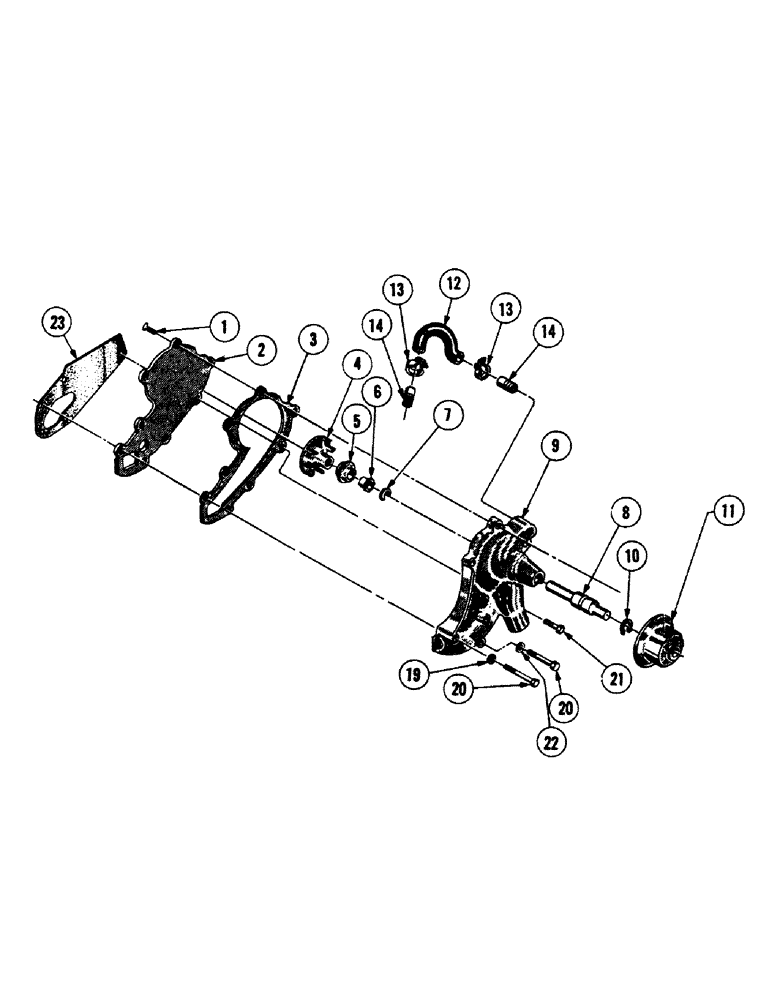

Запчасти Case M3B (032) - GASOLINE ENGINE INSTALLATION, WATER PUMP PARTS, PARTS NOT SHOWN

31175

PUMP ASS'Y. - water (Complete)

1шт.

1

10506

SCREW -, Serial Range: cover-body

4шт.

2

32682

COVER - water pump

1шт.

3

32683

IDLER

GASKET - water pump cover (See Figure 108 for kits)

1шт.

4

10502

IMPELLER - water pump

1шт.

5

10503

SEAL ASSY.

SEAL - water pump (See Figure 108 for kits)

1шт.

6

10505

SWITCH

SHEDDER - water

1шт.

7

10509

RING, LOCKING

RING - brg. seat

7шт.

8

10501

FLANGE

SHAFT - water pump

1шт.

9

32681

BODY - water pump

1шт.

10

10504

GASKET

RETAINER - water pump

1шт.

11

10592

FITTING

HUB - fan

1шт.

12

11072

HOSE - w/p to water outlet elbow

1шт.

13

10615

OLIVE

CLAMP - hose

2шт.

14

10628

NUT

NIPPLE - pipe, 3/8 NP

2шт.

15

RESERVED

1шт.

16

RESERVED

1шт.

17

RESERVED

1шт.

18

RESERVED

1шт.

19

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

3шт.

20

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(45061) Hex, 3/8"-16 x 2 1/4", G5

1шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW & LOCKWASHER ASS'Y. - 3/8-16 NC x 1-1/4

1шт.

22

10298

COPPER WASHER

- copper

1шт.

23

10523

BUSHING

GASKET - w/p to c/case (See Figure 108 for kits)

1шт.

11066

BELT

SCREW & LOCKWASHER ASS'Y. - 3/8-16 NC x 2-1/4, parts not shown

2шт.

6050

KIT - w/p repair, parts not shown

1шт.
