Запчасти Case 588H (25.102.AD[01]) - DRIVE AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM

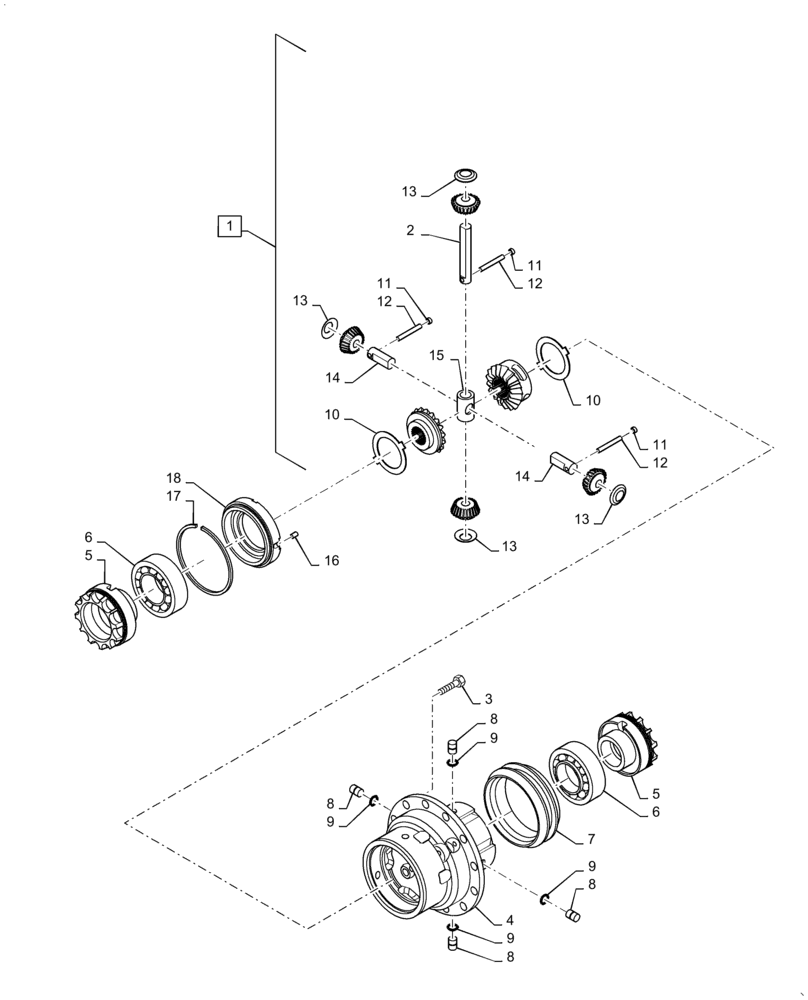

Схема запчастей Case 588H - (25.102.AD[01]) - DRIVE AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM
12
8
3
9
4
14
5
8
8
12
7
10
15
9
6
1
9
8
10
12
16
11
5
6
13
18
2
11
13
17
13
13
11
14
9

Артикул

Название

Примечание

Количество

1

87708394

SERVICE KIT

Rear Axle Differential, Incl 2, 10 - 15

1шт.

2

87708399

AXLE PIN

Rear, Incl in 1

1шт.

3

84203708

FLANGE BOLT,Hex, M12 x 25mm

12шт.

4

87708403

HOUSING

Rear Axle

1шт.

5

84202507

RING NUT,M104 x 1.5

M104 X 1.5

2шт.

6

E135785

BEARING

Side

2шт.

7

87708401

SLEEVE

Rear Axle

1шт.

8

292207A1

PIN

Differential

4шт.

9

292208A1

O-RING

Differential Lock Pin

4шт.

10

87708395

DRIVE PLATE

Rear Axle Differential, Incl in 1

2шт.

11

D142898

PLUG,M10 x 1

M10 X 1, Incl in 1

3шт.

12

87708396

PIN,8mm OD x 45mm L

8 X 45mm, Incl in 1

3шт.

13

E135777

WASHER

Thrust, Incl in 1

4шт.

14

87708397

AXLE PIN

Differential, Incl in 1

2шт.

15

87708398

SPIDER

Gear Rear Axle, Incl in 1

1шт.

16

87708411

PIN,8mm OD x 12mm L

Roller

1шт.

17

87708409

CIRCLIP

Rear Axle

1шт.

18

87708408

HOUSING

1шт.

Выбрано товаров: 18
