(10.500.AO[01]) - SCR MUFFLER & MOUNTING PARTS

Запчасти Case 588H (10.500.AO[01]) - SCR MUFFLER & MOUNTING PARTS (10) - ENGINE

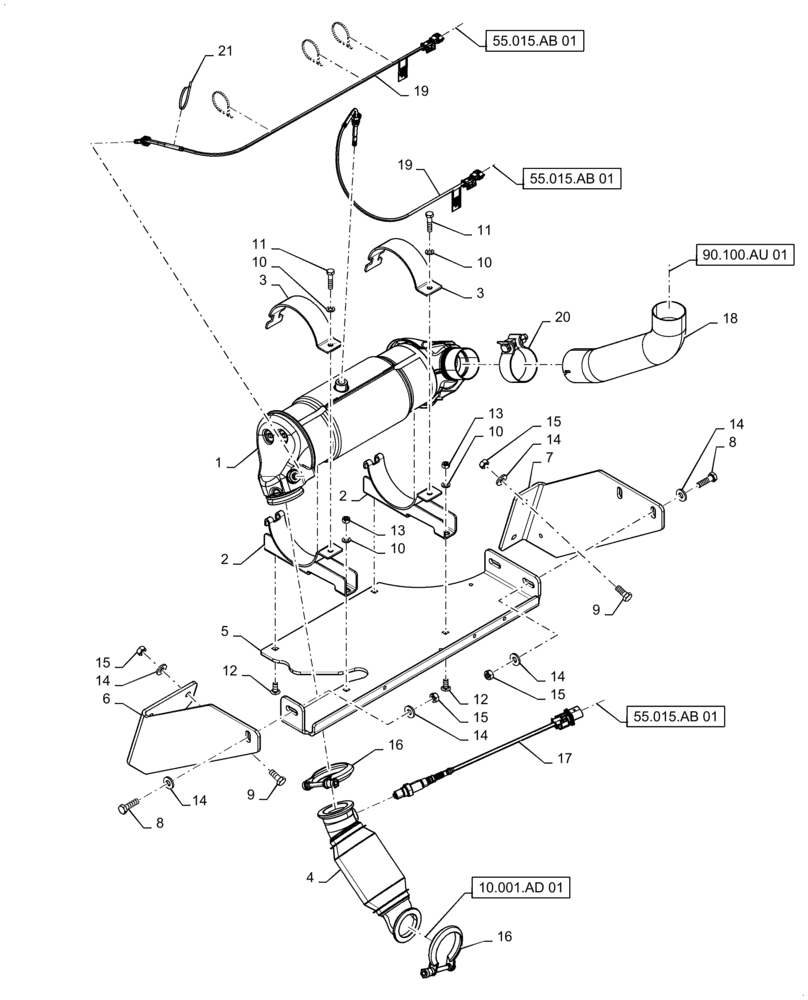

Схема запчастей Case 588H - (10.500.AO[01]) - SCR MUFFLER & MOUNTING PARTS (10) - ENGINE
13
5
14
10
2
55.015.ab 01
10.001.ad 01
8
18
14
2
14
14
21
7
90.100.au 01
4
8
11
19
1
11
16
3
9
10
12
12
15
19
10
14
15
10
15
55.015.ab 01
15
9
14
17
16
3
13
6
20
55.015.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47618234

CATALYST

Catalyst, Particulate Matter

1шт.

Inner Components not Serviced Separately

1шт.

2

47520912

SUPPORT

2шт.

3

47520915

COLLAR CLAMP

2шт.

4

47498724

TUBE

Exhaust, Flex Coupler W/Lambda Uhego Sensor, Years: -15-APR-15

1шт.

4

47849405

EXHAUST SYSTEM PIPE

Exhaust, Flex Coupler W/O Lambda Uhego Sensor, Start Year: 15-APR-15

1шт.

5

47611120

PLATFORM

1шт.

6

47521430

BRACKET

LH

1шт.

7

47521424

BRACKET

RH

1шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

11

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

12

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

16

84409146

PIPE CLAMP,63.5mm - 70mm

Exhaust

2шт.

17

84286040

SENSOR

Lambda Uhego, Years: -15-APR-15

1шт.

18

47748749

EXHAUST SYSTEM PIPE

1шт.

19

47478894

TEMPERATURE SENDER,50mm L

EGT Temperature, 50mm Open

2шт.

20

47546634

PIPE CLAMP,65.3mm ID

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

4шт.
