Запчасти Case 588H (90.120.BC[03]) - SEAT BELT - 3 INCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

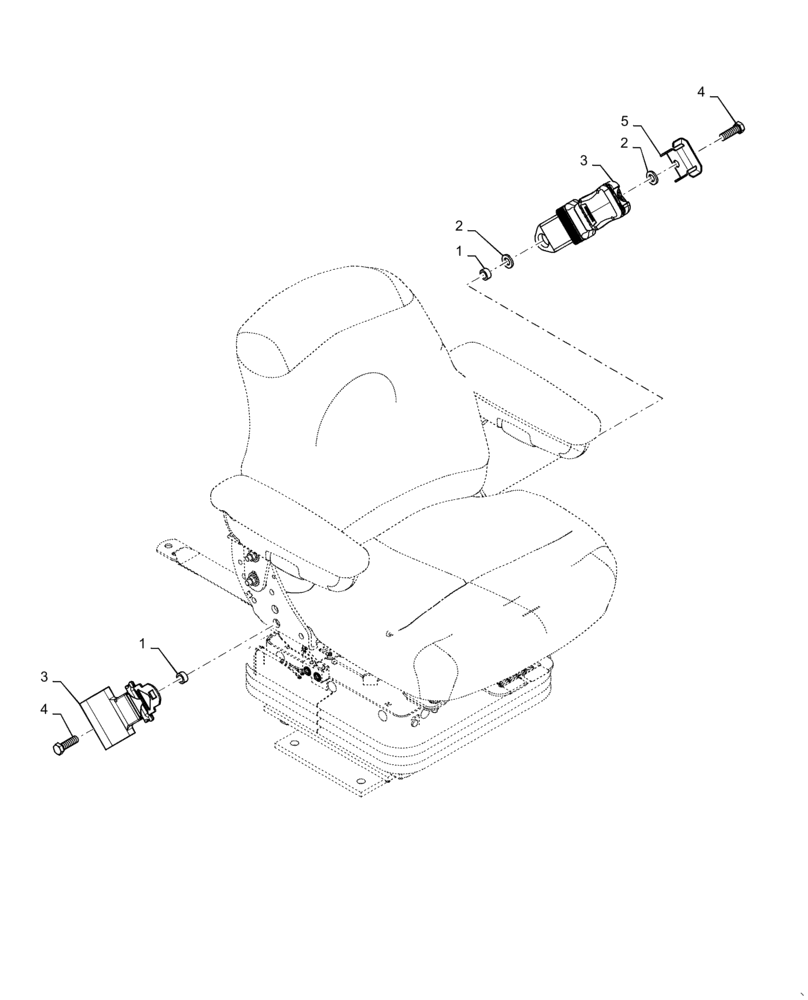

Схема запчастей Case 588H - (90.120.BC[03]) - SEAT BELT - 3 INCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
2
1
3
4
5
4

Артикул

Название

Примечание

Количество

1

D150391

SPACER

Seat Belt Mounting

2шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

3

47600153

SEAT BELT,3 inch Wide Belt

Assembly

1шт.

3

NSS

NOT SOLD SEPARAT

2" Seat Bealt Assembly, Orange - Order Through Special Features

1шт.

4

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

5

87310149

BRACKET

Seat Belt Mounting

1шт.

Выбрано товаров: 6
