Запчасти Case 588H (90.114.AQ[02]) - ROPS COVERS & MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

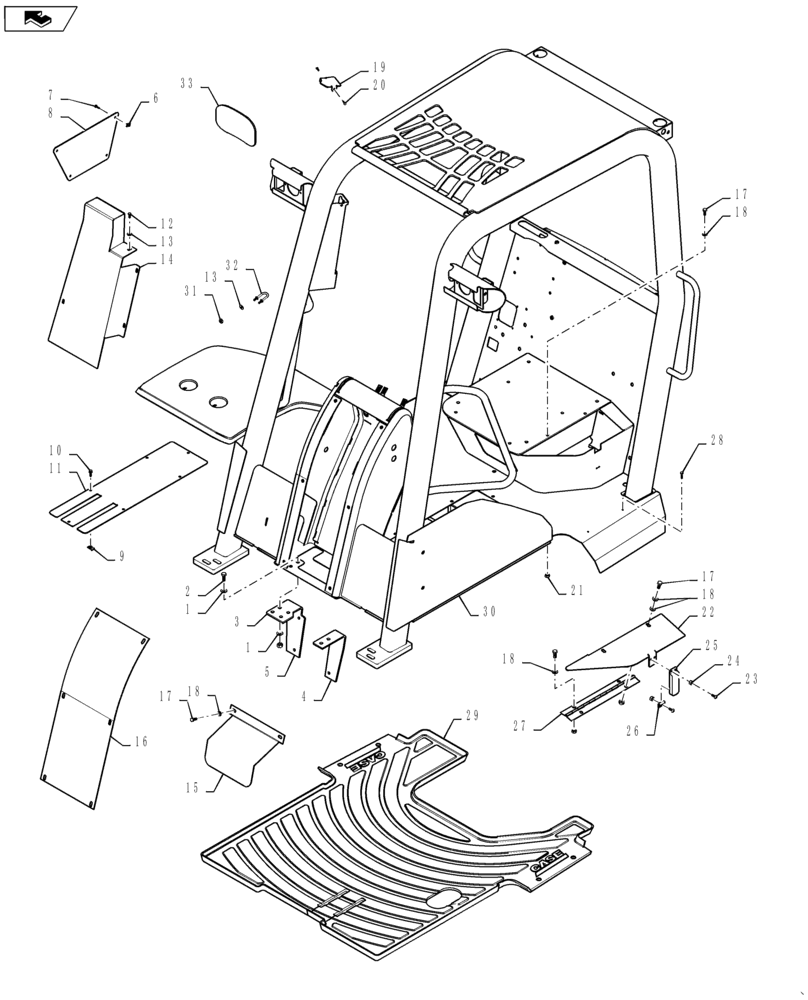

Схема запчастей Case 588H - (90.114.AQ[02]) - ROPS COVERS & MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
26
30
24
18
8
13
22
33
29
18
16
2
17
17
9
28
14
1
18
25
13
home
5
18
12
27
10
7
19
23
31
32
1
11
21
15
20
17
3
4

Артикул

Название

Примечание

Количество

1

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

345349A1

BRACKET

Painted

1шт.

4

345348A1

BRACKET

Painted

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

6

131-623

SPRING NUT,Tinn, U, #10-24

4шт.

7

365133A1

SCREW

Captive

4шт.

8

338094A1

PLATE

Cover

1шт.

9

833-40406

NUT,M6, U

6шт.

10

233724A1

FLANGE BOLT,Hex, M6 x 1 x 25mm

6шт.

11

84360242

PLATE

Floor Cover

1шт.

12

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

4шт.

13

495-11028

WASHER,1/4", SAE

8шт.

14

84468921

PLATE

ECU Cover

1шт.

15

361234A1

PLATE

Valve Guard, Years: -26-AUG-15

1шт.

15

47898680

PLATE

Valve Guard, Start Year: 26-AUG-15

1шт.

16

327291A1

COVER

Rear Console

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

10шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

12шт.

19

84498260

COVER

Instrument Cluster

19шт.

20

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

22

352520A2

PLATE

Tool Box Cover

1шт.

23

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

24

231-14409

NUT,#10-24, GB

4шт.

25

D131940

LATCH

Toolbox

1шт.

26

D131941

PLATE

Strike, Toolbox Latch

1шт.

27

352519A1

HINGE

Toolbox

1шт.

28

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

4шт.

29

329776A1

FLOOR MAT

Rubber

1шт.

30

47617594

PLATFORM

Operator

1шт.

31

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

32

335934A1

BOLT

Lock Up

2шт.

33

87441735

MIRROR ASSY.

Side

2шт.

Выбрано товаров: 34
