Запчасти Case 588H (90.100.AU[01]) - ENGINE HOOD AND EXHAUST PIPE INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

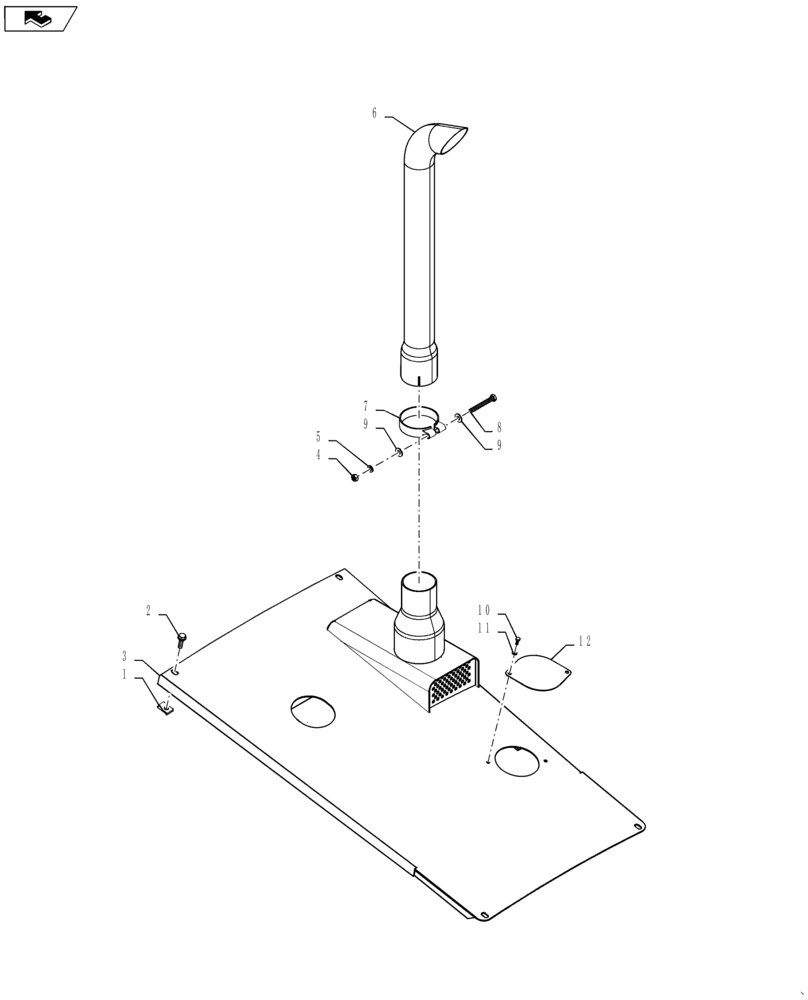

Схема запчастей Case 588H - (90.100.AU[01]) - ENGINE HOOD AND EXHAUST PIPE INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
11
3
10
1
2
12
8
9
home
6
7
9

Артикул

Название

Примечание

Количество

1

833-40310

NUT,M10, U

1шт.

2

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

M10

4шт.

3

47562678

HOOD

Forklift Fixed

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

87309656

EXHAUST SYSTEM PIPE

3 Inch

1шт.

7

87437804

PIPE CLAMP,94mm ID

Exaust

1шт.

8

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

2шт.

10

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

11

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

M6

2шт.

12

409695A1

COVER

Radiator

1шт.

Выбрано товаров: 12
