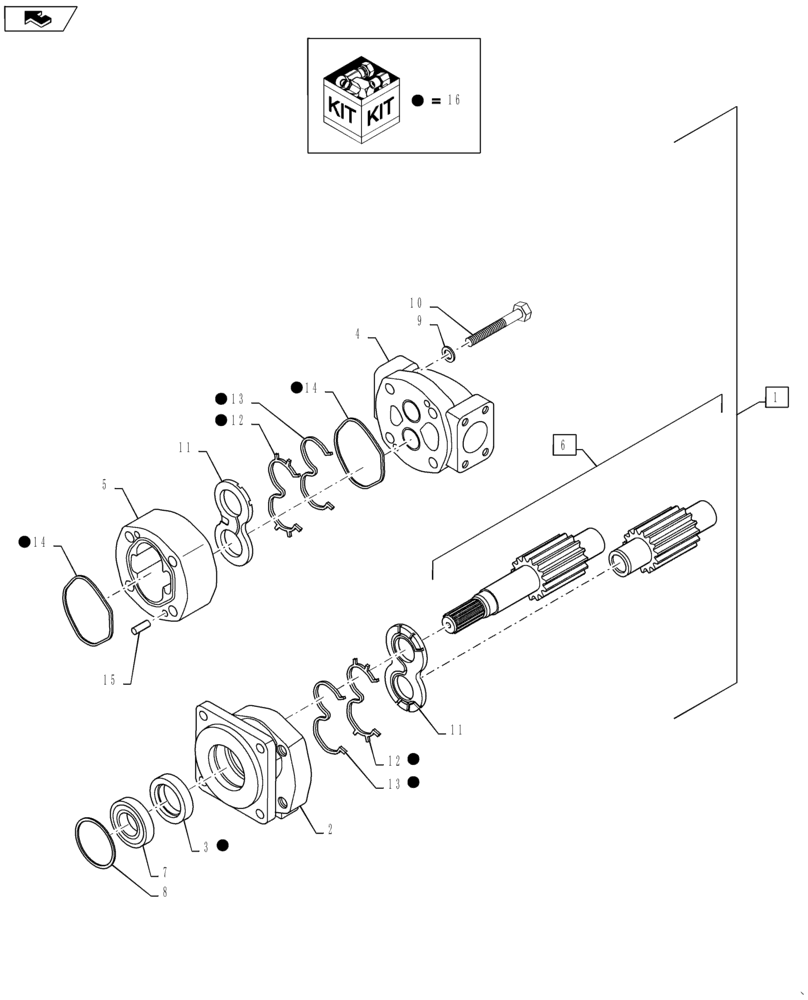

Запчасти Case 588H (35.106.AD[01]) - PARKER PUMP ASSEMBLY, 24 GPM 588H (35) - HYDRAULIC SYSTEMS

1

87677683

HYDRAULIC PUMP

588H Forklift Only; Incl 2 - 15, Years: -05-MAR-16

1шт.

2

NSS

NOT SOLD SEPARAT

Cover; Shaft End Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft Seal Incl in 16

1шт.

4

NSS

NOT SOLD SEPARAT

Cover; Closed End Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Housing; Gear; Shaft End Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Gear, Set Incl in 1

1шт.

7

18-970

BALL BEARING

Ball

1шт.

8

102-23206

SNAP RING,#206, 2.190", Int, Spiral

1шт.

9

3031159R1

WASHER

Cover

4шт.

10

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

11

NSS

NOT SOLD SEPARAT

Thrust Plate Inc in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Seal Incl in 16

2шт.

13

NSS

NOT SOLD SEPARAT

Back Up Ring Seal Incl in 16

2шт.

14

NSS

NOT SOLD SEPARAT

Seal Incl in 16

2шт.

15

W16323

DOWEL

Pin

4шт.

16

341552A1

SEAL KIT

Incl 3 , 12 - 14

1шт.
