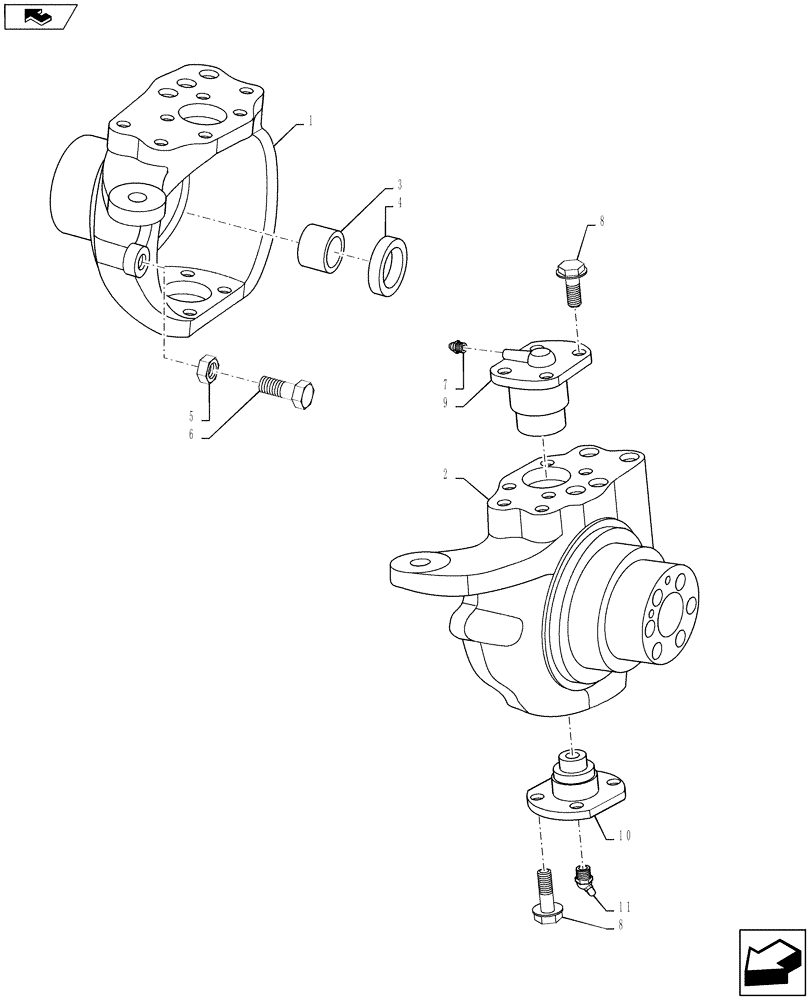

Запчасти Case 588H (27.450.01) - STEERING AXLE, SWIVEL HOUSING, 4WD (27) - REAR AXLE SYSTEM

1

87710156

STEERING KNUCKLE

Swivel, RH

1шт.

2

87710159

STEERING KNUCKLE

Swivel, LH

1шт.

3

100532A1

BUSHING

Used With Right-Hand or Left-Hand Swivel Housing

2шт.

4

87710145

OIL SEAL

Snap

2шт.

5

85805986

NUT,M16

2шт.

6

5194264

BOLT

M16 x 75

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

8

100533A1

BOLT,Self-Lock, M12 x 30mm

M12 x 30

16шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Upper

2шт.

10

122264A1

PIN

Lower King

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.
