Запчасти Case 588H (27.120.02) - STEERING AXLE, PLANETARY GEAR 4WD (27) - REAR AXLE SYSTEM

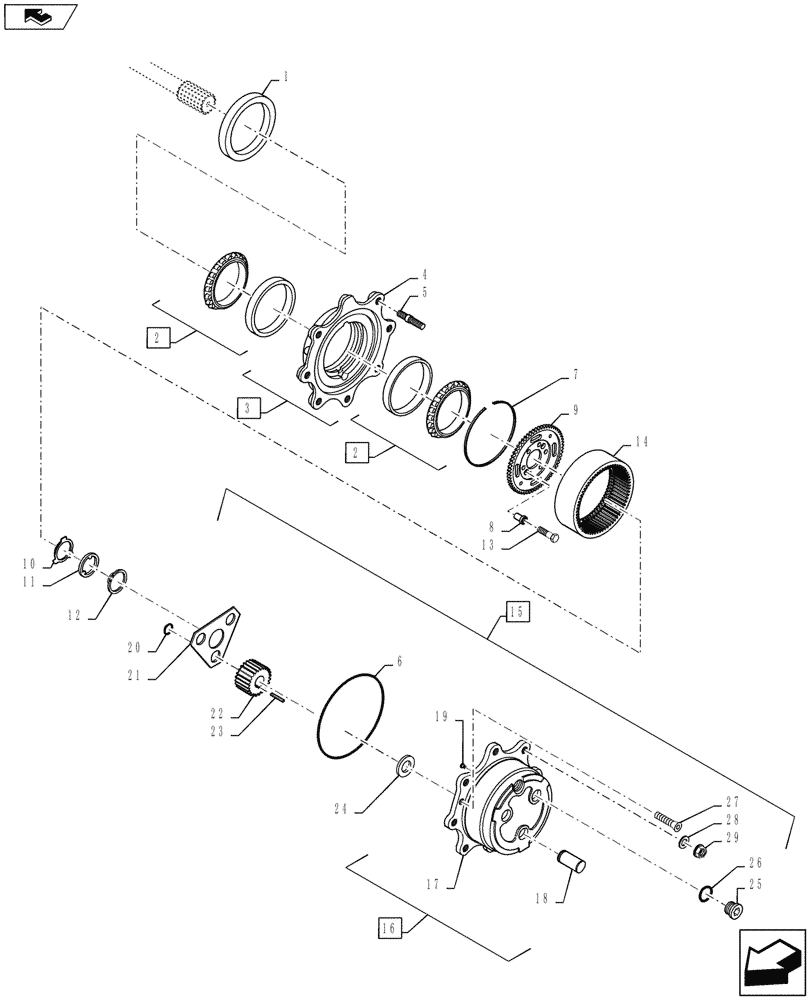

Схема запчастей Case 588H - (27.120.02) - STEERING AXLE, PLANETARY GEAR 4WD (27) - REAR AXLE SYSTEM
home
16
8
9
13
22
27
23
17
24
4
1
19
2
28
26
21
6
12
2
14
29
18
5
7
15
11
25
20
10
3

Артикул

Название

Примечание

Количество

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Triple Lip

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

4шт.

3

144466A1

HUB

1 Per Side, Incl 4 - 5

2шт.

4

NSS

NOT SOLD SEPARAT

Wheel Incl in 3

1шт.

5

100556A1

STUD

Hub

8шт.

6

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

7

100559A1

SPECIAL RING

Snap

2шт.

8

116426A1

BUSHING

Gear

12шт.

9

116427A1

GEAR

Ring

2шт.

10

190684A1

THRUST WASHER

Planetary

2шт.

11

190682A1

THRUST WASHER

Planetary

2шт.

12

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

Snap Ring

2шт.

13

116425A1

BOLT

12шт.

14

100561A1

GEAR

Ring

2шт.

15

100554A1

PINION CARRIER

Incl 16, 19 - 26

2шт.

16

100553A1

HOUSING ASSY.

Incl 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

Carrier, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Shaft, Pinion, Incl in 16

3шт.

19

K395093

HEADED PIN,12mm OD x 15mm L

Thrust Pin

1шт.

20

800-1134

SNAP RING,M34, Ext

6шт.

21

100555A1

LARGE PLATE

Carrier

2шт.

22

K395114

GEAR

Sun - Not Shown

2шт.

22

100562A1

GEAR, PLANETARY

Pinion

6шт.

23

114295A1

10 NEEDLE BRG KIT

9шт.

24

K395091

THRUST WASHER

Plate

6шт.

25

100557A1

PLUG, DRAIN,M30 x 2

Incl 26

2шт.

26

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

27

K395082

SCREW,M8 x 20mm

4шт.

28

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Not Included In Assembly, Purchase Separately

16шт.

29

100092

WHEEL NUT,M18 x 1.5, Cl 8

Not Included In Assembly, Purchase Separately

16шт.

Выбрано товаров: 30
